Description

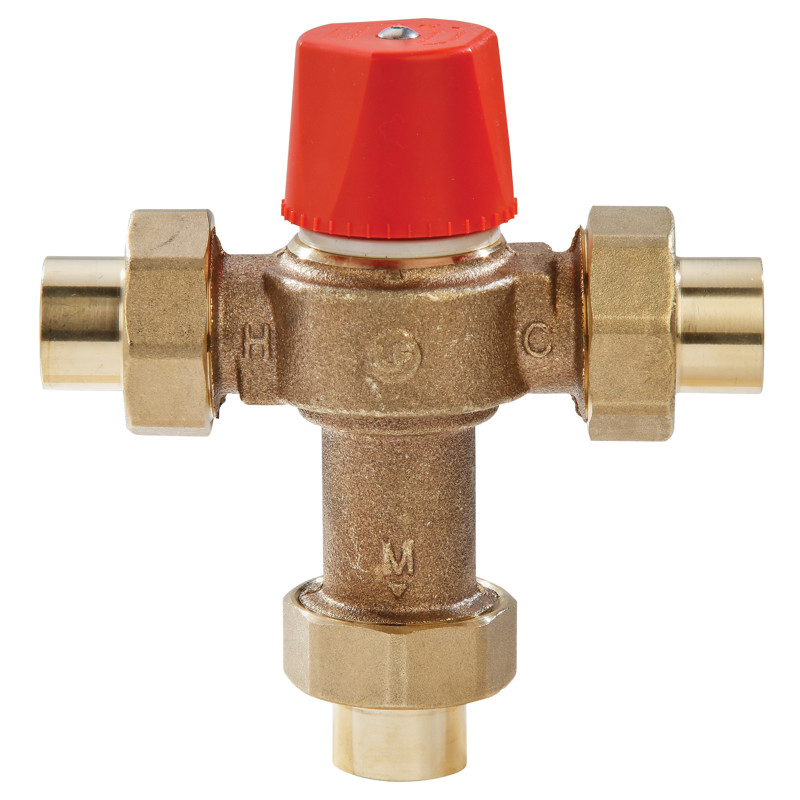

This 1 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 60 to 120 degrees F (16 to 49 degrees C).
Attributes
- 🔹: Lead free brass construction
- 🔹: Thermal actuation technology for precise temperature control
- 🔹: Integral filter washers and check valves
- 🔹: CSA certified B125 and ASSE 1017, IAMPO and UPC listed
- Type: Waterworks Products
- Collection: LF1170
