1 Lfn240X9 150-210

Coburn's Product #: WAT0121589

Mfg#: 0121589

Brand: Watts Regulator

Description

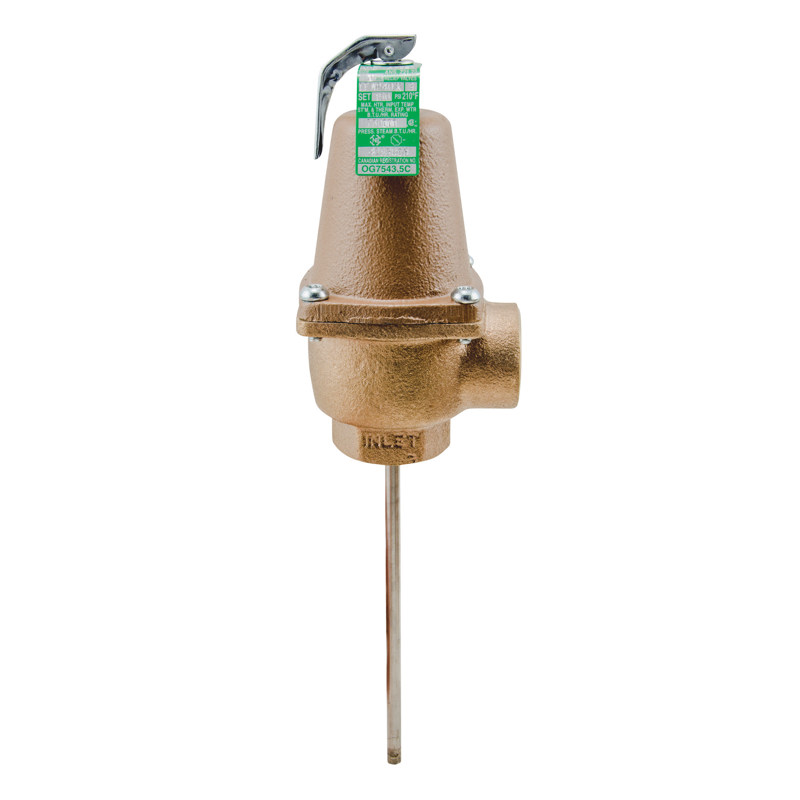

This 1 inch lead free automatic reseating temperature and pressure relief valve with a 9 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free brass body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

Attributes

  • 🔹: Lead free brass body construction
  • 🔹: Tamper resistant bonnet screws
  • 🔹: 9 Inch thermostat length
  • 🔹: Non-mechanical seat to disc alignment
  • Type: Pressure Relief Valves
  • Collection: LFN240

Resources

SpecSheet
  • This 1 inch lead free automatic reseating temperature and pressure relief valve with a 9 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free brass body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

    • 🔹: Lead free brass body construction
    • 🔹: Tamper resistant bonnet screws
    • 🔹: 9 Inch thermostat length
    • 🔹: Non-mechanical seat to disc alignment
    • Type: Pressure Relief Valves
    • Collection: LFN240
  • SpecSheet
