1/2 Lfdptg1-3 0-50

49a04fe83961a735327f54f3364accbd8a2dec9b

1/2 Lfdptg1-3 0-50

Coburn's Product #: WAT0121663

Mfg#: 0121663

Brand: Watts Regulator

Description

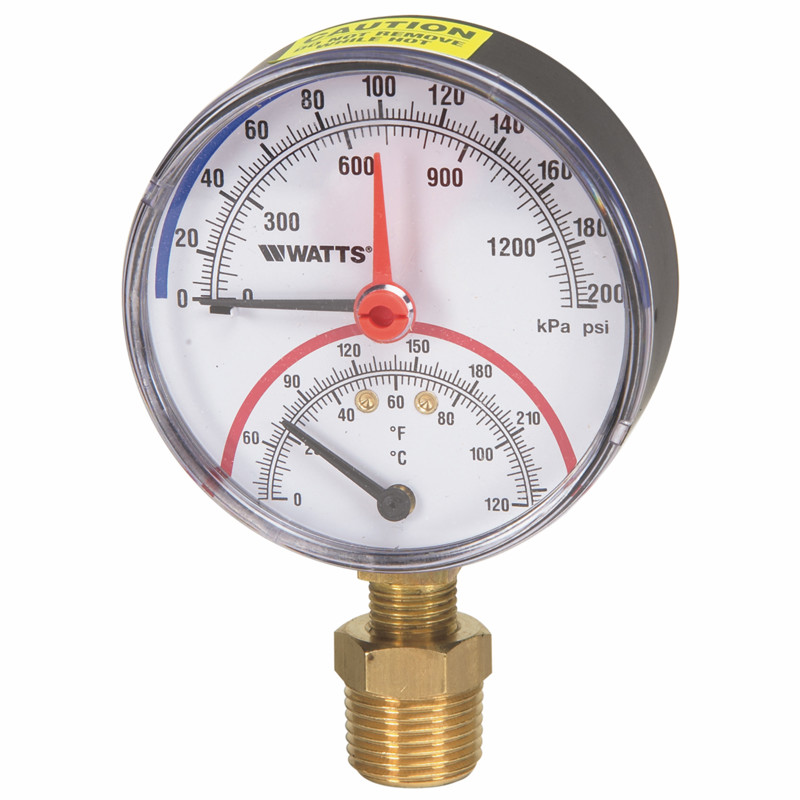

This 1/2 inch lead free bottom entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 50 psi and temperature range 32 to 248 degrees F.

Attributes

  • 🔹: Black enamel steel case
  • 🔹: Kostil polymer window
  • 🔹: Copper alloy Bourdon sensing element
  • 🔹: Tin alloy welding
  • Type: Waterworks Products
  • Collection: LFDPTG-1
