1/2 Lfdptg3-2 1/2 0-75

6d7b1ed3a162cf50636d1cdc093a91d13e0b9b04

1/2 Lfdptg3-2 1/2 0-75

Coburn's Product #: WAT0121686

Mfg#: 0121686

Brand: Watts Regulator

Description

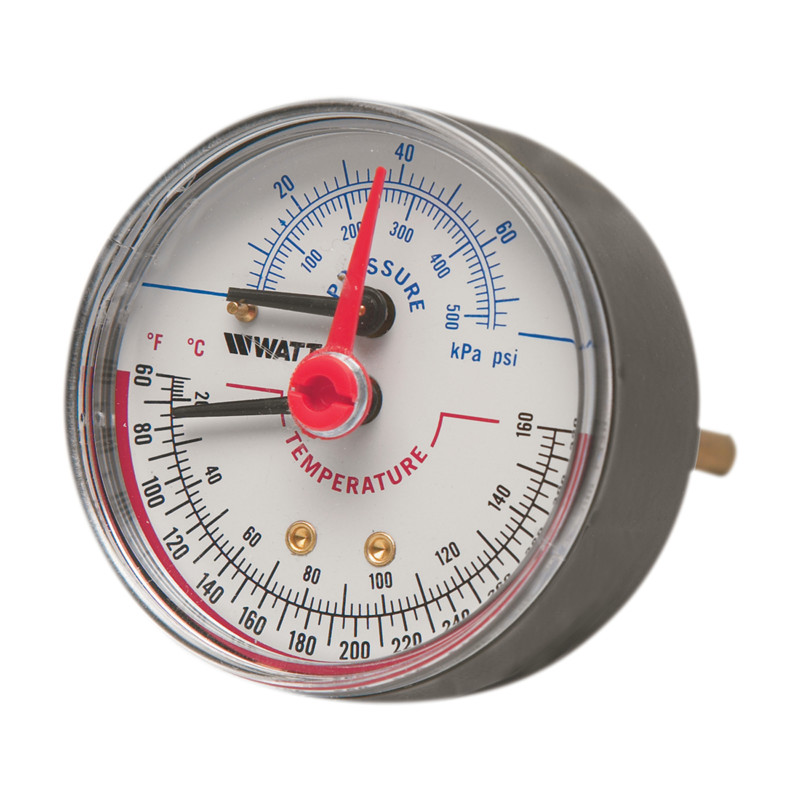

This 1/2 inch lead free center back entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center back entry with extended temperature element, a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 2 1/2 inch dial with pressure rating scale from 0 to 75 psi and temperature range 60 to 320 degrees F.

Attributes

  • 🔹: Black enamel steel case
  • 🔹: Kostil polymer window
  • 🔹: Copper alloy Bourdon sensing element
  • 🔹: Tin alloy welding
  • Type: Waterworks Products
  • Collection: LFDPTG-3

Resources

SpecSheet
  • This 1/2 inch lead free center back entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center back entry with extended temperature element, a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 2 1/2 inch dial with pressure rating scale from 0 to 75 psi and temperature range 60 to 320 degrees F.

    • 🔹: Black enamel steel case
    • 🔹: Kostil polymer window
    • 🔹: Copper alloy Bourdon sensing element
    • 🔹: Tin alloy welding
    • Type: Waterworks Products
    • Collection: LFDPTG-3
  • SpecSheet
