100XL-8-150210 3/4 IN SELF CLOSING TEMPERATURE AND PRESSURE RELIEF VALVE

Watts 098268007237

100XL-8-150210 3/4 IN SELF CLOSING TEMPERATURE AND PRESSURE RELIEF VALVE

Coburn's Product #: WAT0066110

Mfg#: 0066110

Brand: Watts Regulator

Description

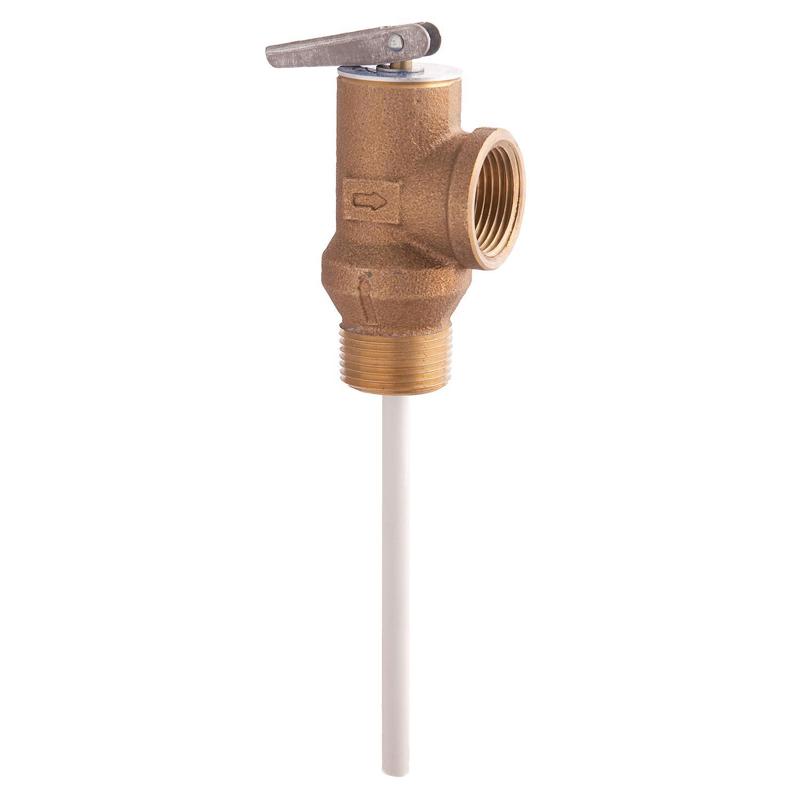

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 150 psi (10.6 bar).

Attributes

  • 🔹: Unique thermostat with special thermo-bonded coating
  • 🔹: Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. Series
  • 🔹: Temperature and pressure relief valve to protect the heater from excessive pressure and temperature
  • 🔹: thermostat is accurate and proven
  • Type: Pressure Relief Valve
  • This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 150 psi (10.6 bar).

    • 🔹: Unique thermostat with special thermo-bonded coating
    • 🔹: Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. Series
    • 🔹: Temperature and pressure relief valve to protect the heater from excessive pressure and temperature
    • 🔹: thermostat is accurate and proven
    • Type: Pressure Relief Valve
