140X5-125210 3/4 3/4 IN Automatic Reseating Temperature and Pressure Relief Valve

83948861770cb353b3fb17405eff51a22315dc08

140X5-125210 3/4 3/4 IN Automatic Reseating Temperature and Pressure Relief Valve

Coburn's Product #: WAT0257562

Mfg#: 0257562

Brand: Watts Regulator

Description

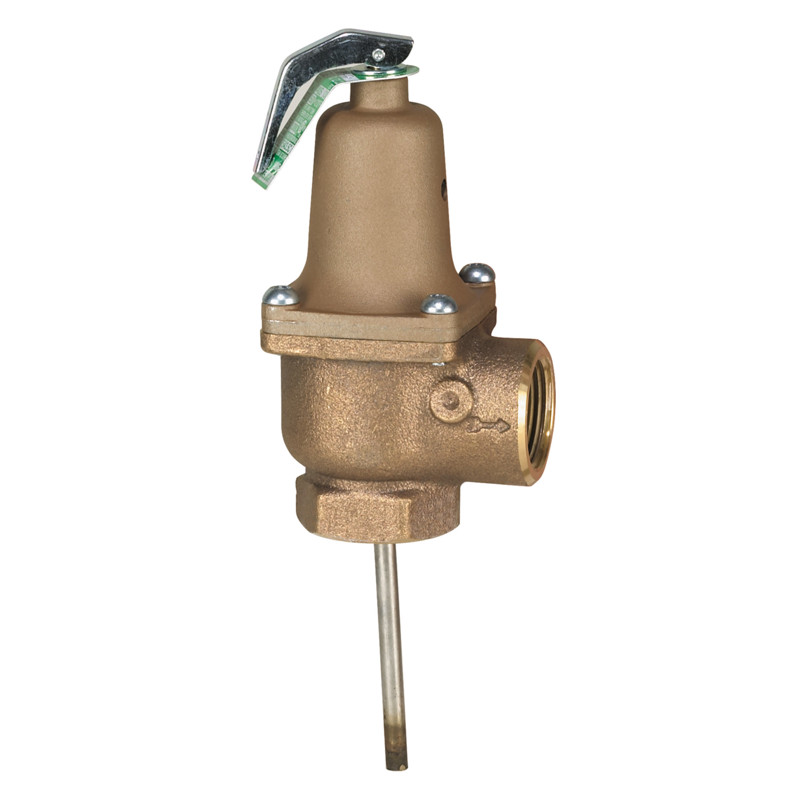

This 3/4 inch bronze automatic reseating temperature and pressure relief valve with a 5 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

Attributes

  • 🔹: Thermo-bonded thermostat
  • 🔹: Tamper resistant bonnet screws
  • 🔹: 5 Inch thermostat length
  • 🔹: Non-mechanical seat to disc alignment
  • Type: Pressure Relief Valves
  • Collection: 140

Resources

SpecSheet
Parts Breakdown
  • This 3/4 inch bronze automatic reseating temperature and pressure relief valve with a 5 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

    • 🔹: Thermo-bonded thermostat
    • 🔹: Tamper resistant bonnet screws
    • 🔹: 5 Inch thermostat length
    • 🔹: Non-mechanical seat to disc alignment
    • Type: Pressure Relief Valves
    • Collection: 140
  • SpecSheet
    Parts Breakdown
