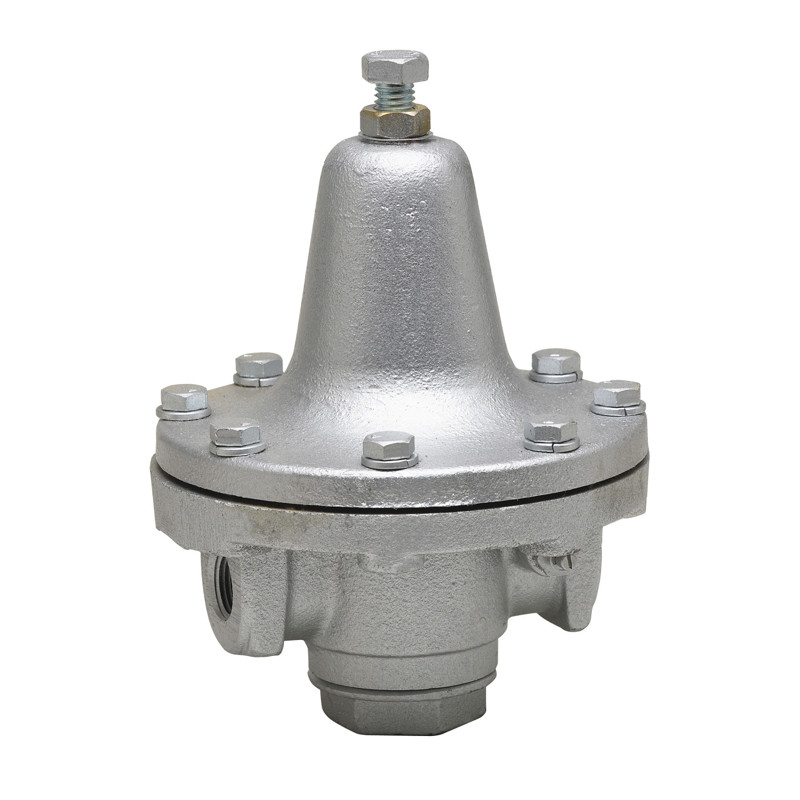

152A-10-50 1/2 IN Steam Pressure Regulator

09bdd3adf21816704fda494a67e34f8e0c857d8e

152A-10-50 1/2 IN Steam Pressure Regulator

Coburn's Product #: WAT0830910

Mfg#: 0830910

Brand: Watts Regulator

Description

This 1/2 inch process steam pressure regulator is designed for autoclaves, steam tables/irons, vulcanizers and single radiators. It is also used on sterilizers, process lines, testing fixtures and oil lines. It is highly sensitive to reduced pressure changes, and carries full volume with minimum pressure drop. It features an iron body with NPT threaded female inlet and outlet connections, with initial pressure up to 200 psi and adjusting spring for reduced pressure range of 10 to 50 psi (0.7 to 3.5 bar).

Attributes

  • 🔹: Iron body
  • 🔹: Stainless steel disc
  • 🔹: NPT threaded female inlet and outlet connections
  • 🔹: Serviceable in line
  • Type: Waterworks Products
  • Collection: 152A
