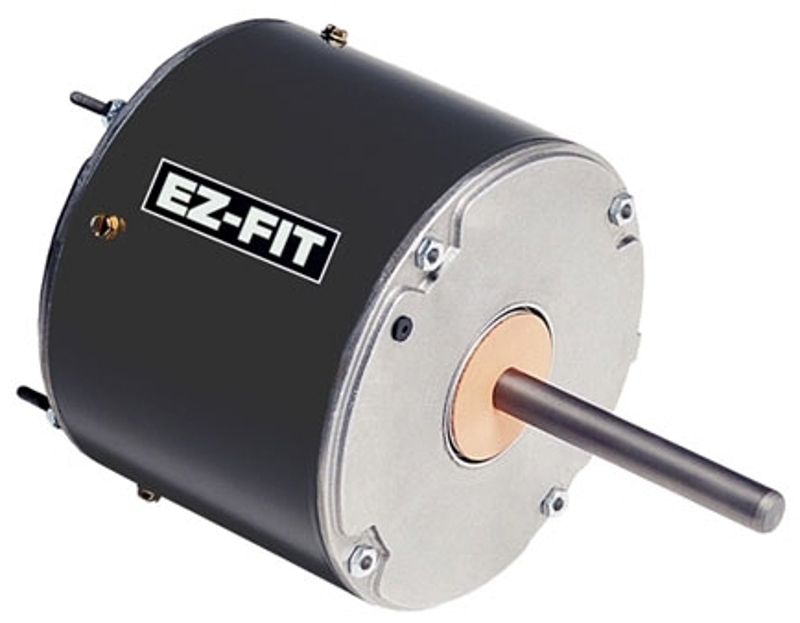

1/3 / 1/5 HP, 825 RPM, 1875H, 208-230 V, 60 HZ, 48Y ELECTRICAL MOTOR

1/3 / 1/5 HP, 825 RPM, 1875H, 208-230 V, 60 HZ, 48Y Model_Number: K055WGG0948012B, PRODUCT NAME: .333 HP - TEAO - 825, PHASETYPE: 1_PERMANENT SPLIT CA, MOTOR ENCLOSURE: TEAO, HORSEPOWER: .333, HORSEPOWER 2: 0.2, POLES: 8, NUMBER SPEEDS: 1, RPM: 825, HERTZ: 60, VOLTS PRIMARY: 208-230 V, VOLTS : 208, VOLTS 2: 230, FRME : 48, SHAFT CODE: Y, STATOR DIAMETER: 5.5, STACK: 2.25, MOUNTING: STUD, MOTOR TYPE: FHP, OPPOSITE END BEARING: BALL, SHAFT END BEARING: BALL, AMBIENT: 70, ROTATION: CCW LEAD END REV, SERVICE FACTOR: 1, RUNCAPMFD: 7.5, RUNCAPVOLTS: 440, SHIPPING WEIGHT: 17, THERMAL PROTECTION: AUTOMATIC RESET, BREAKDOWN TORQUE: 50.7, BREAKDOWN TORQUE UOM: OZFT, LOCKED ROTOR TORQUE: 9.619, LOCKED ROTOR TORQUE UOM: OZFT, INSULATION CLASS: F, LOCKED ROTOR AMPS: 4.25, FULL LOAD AMPS PRIMARY: 2.4-1.4, SERVICE FACTOR AMPS PRIMARY: 2.4-1.4
