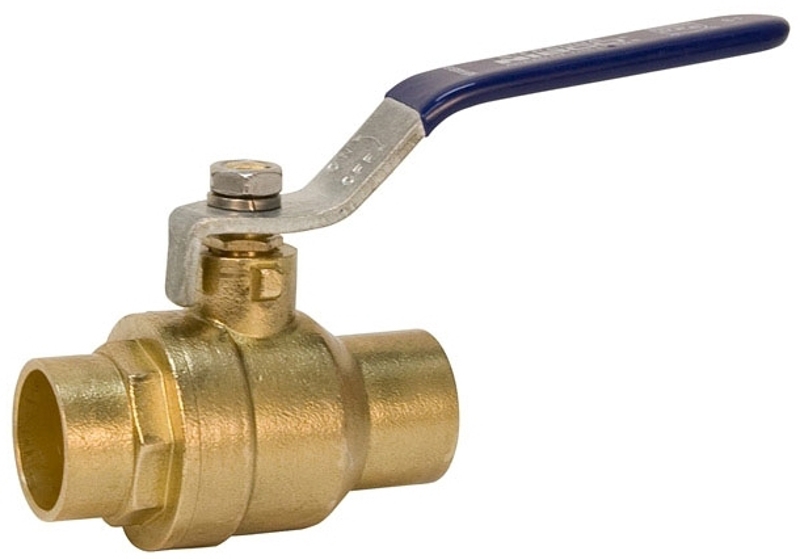

SFP600A 1/2 600PSI SOLDER FULL PORT BV
Description
The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO INC. 2-year limited warranty.
Attributes
- 🔹: Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
- 🔹: Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
- 🔹: Full port
- 🔹: Chrome-plated brass ball and stem
- 🔹: Blowout-proof stem
- 🔹: Standard lever handle
- 🔹: Female solder cup end connections
- 🔹: Use in U.S. drinking water applications is prohibited after January 3, 2014
- Type: Brass Ball Valve
- Body Type: 600 PSI
- Connections: Female Soldered X Female Soldered
- Length: 4.520
- Material: Brass
- Port: Full Port
- Pressure Rating: 600 PSI
- Size: 1/2 in.
- Width: 2.420
