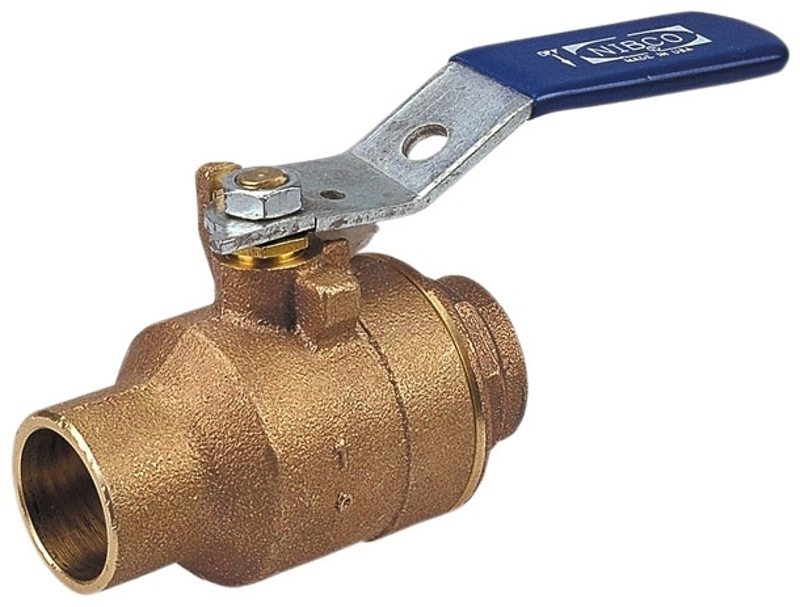

S58570 2 FP W/LEVER HDLE
Description
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Attributes
- 🔹: Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- 🔹: Maximum temperature rating 400°F
- 🔹: Chrome plated brass ball, silicon bronze stem
- 🔹: Blowout-proof stem
- 🔹: Standard lever handle, optional NIB-SEAL®
- 🔹: Solder end connections
- 🔹: Dezincification resistant
- 🔹: Use in U.S. drinking water applications is prohibited after January 3, 2014
- 🔹: Conforms to MSS SP-110
- Type: Brass Ball Valve
- Body Type: 600 PSI
- Connections: Female Soldered X Female Soldered
- Length: 10.100
- Material: Bronze
- Port: Full Port
- Pressure Rating: 600 PSI
- Size: 2 in.
- Width: 5.400
