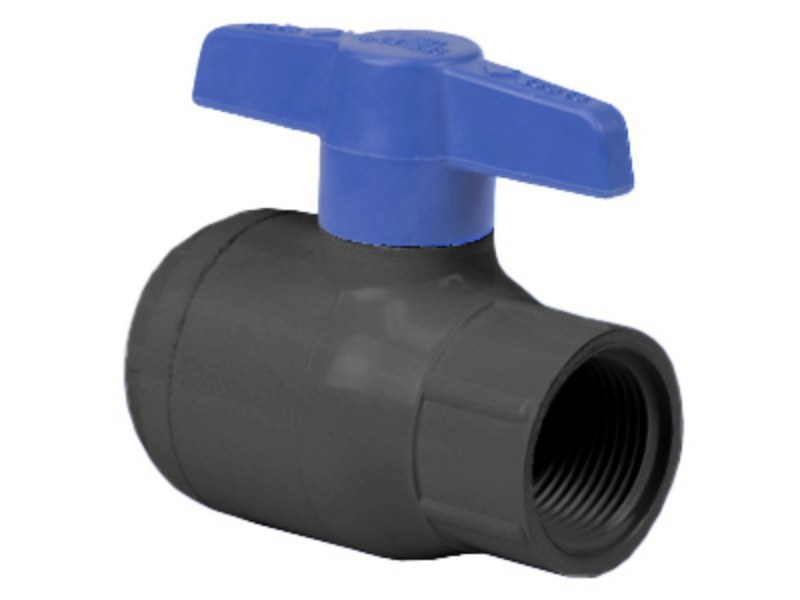

4660T 1/2 TXT PVC BALL VALVE
Description
The PVC Schedule 80 ball valve is used in cold water pressure distribution systems including irrigation, pool and spa, potable water and chilled water applications. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Polyvinyl chloride (PVC) is the most frequently specified of all thermoplastic materials because of its light weight, durability and cost-effectiveness. PVC Schedule 80 is easy to install and is joined by threading. PVC fittings exhibit high corrosion and chemical resistance and will not rust, scale, pit or corrode. NIBCO® plastic fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Attributes
- 🔹: 150 psi/10.3 bar non-shock cold working pressure to 73ºF
- 🔹: Maximum service temperature 113º at 112 psi
- 🔹: Thread connection per ASME B1.20.1
- 🔹: ASTM D2467
- 🔹: ASTM D1784, cell Class 12454
- 🔹: NSF/ANSI/CAN-61
- 🔹: NSF/ANSI/CAN-372
- 🔹: NSF/ANSI Standard 14 (1/2"-2" sizes)
- Type: PVC Ball Valve
- Configuration: Ball Valve
- Connections: M X M
- Length: 3.270
- Material: PVC - Polyvinyl Chloride
- Size: 1/2 in
- Width: 2.520
