3 MF115,DI,150#,SST,FC ARD Automatic Control VALVE

5384a9d0a01048ca5aada4db60abb032869c659b

3 MF115,DI,150#,SST,FC ARD Automatic Control VALVE

Coburn's Product #: WAT260049

Mfg#: 2600-49

Brand: Watts Regulator

Description

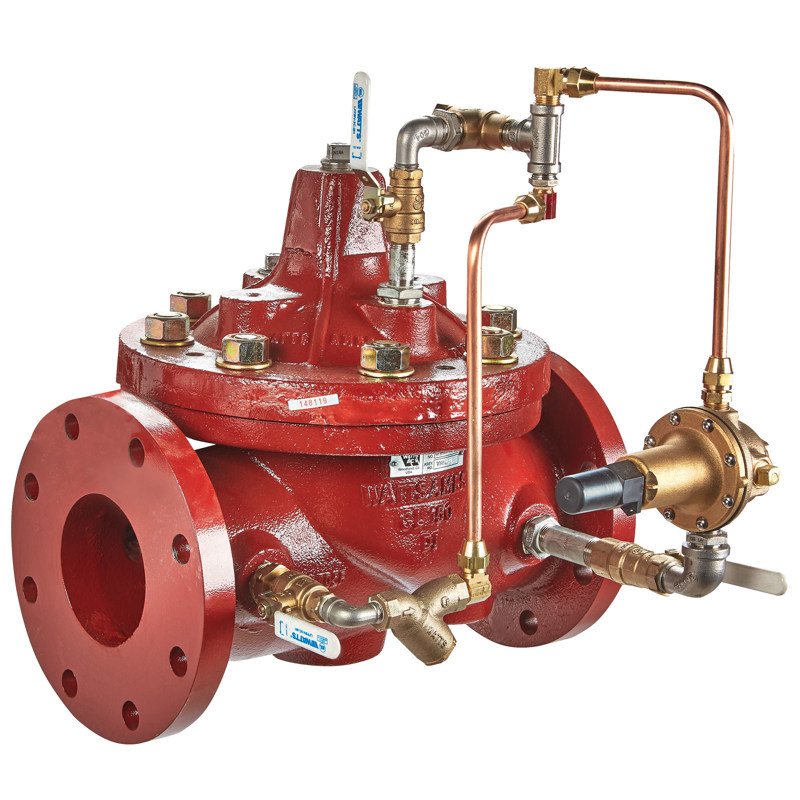

This 3 inch ductile iron 150# flanged globle style pressure reducing ACV, M115 series, has a pilot range of 30-300 psig. This valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping.

Attributes

  • 🔹: Throttles to reduce high upstream pressure to constant lower downstream pressure
  • 🔹: Body and cover are constructed of strong and durable ductile iron (ASTM A536)
  • 🔹: Simplified and efficient design is easy and economical to maintain
  • 🔹: Full port design
  • Type: Waterworks Products
  • Collection: LFM115

Resources

SpecSheet
  • This 3 inch ductile iron 150# flanged globle style pressure reducing ACV, M115 series, has a pilot range of 30-300 psig. This valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping.

    • 🔹: Throttles to reduce high upstream pressure to constant lower downstream pressure
    • 🔹: Body and cover are constructed of strong and durable ductile iron (ASTM A536)
    • 🔹: Simplified and efficient design is easy and economical to maintain
    • 🔹: Full port design
    • Type: Waterworks Products
    • Collection: LFM115
  • SpecSheet
