3/4 315M2-015 3/4 X 3/4 IN BRONZE STEAM SAFETY RELIEF VALVE

9b75900b365010507c54556b8a0c768fb3300e93

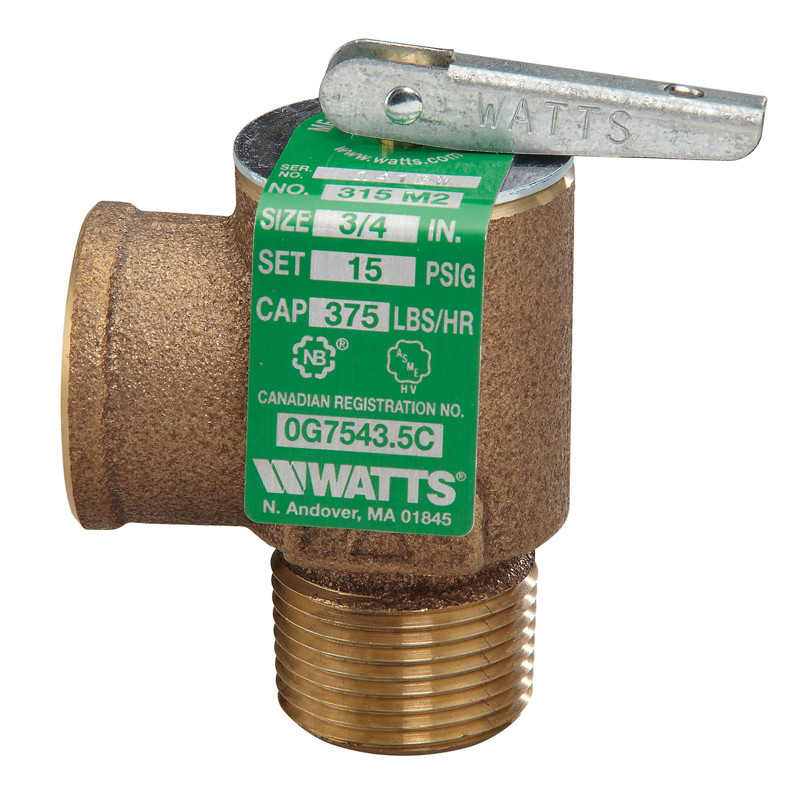

3/4 315M2-015 3/4 X 3/4 IN BRONZE STEAM SAFETY RELIEF VALVE

Coburn's Product #: WAT0342629

Mfg#: 0342629

Brand: Watts Regulator

Description

This 3/4 x 3/4 inch high capacity safety relief valve is designed for low pressure, steam heating boilers and process equipment used in industrial and commercial applications. It features a bronze body, stainless steel spring, top guided stem, NPT threaded male inlet x threaded female outlet (drain) connection, and a non-stick PTFE(R) disc to metal seating ensures positive shutoff. The factory pressure setting for saturated steam service is set at 15 psi. This valve has an ASME, section IV rating.

Attributes

  • 🔹: Pressure for saturated steam service set at 15 psi
  • 🔹: Bronze body
  • 🔹: NPT male inlet x NPT female outlet
  • 🔹: Top guided stem and non-stick PTFE disc to metal seat assures positive shutoff
  • Type: Pressure Relief Valves
  • Collection: 315-M2

Resources

SpecSheet
Parts Breakdown
