DPF222R Eaton 60 Amps 120/240 Volts Fused Disconnect

Coburn's Product #: 75142422

Mfg#: DPF222R

Brand: Eaton

Description

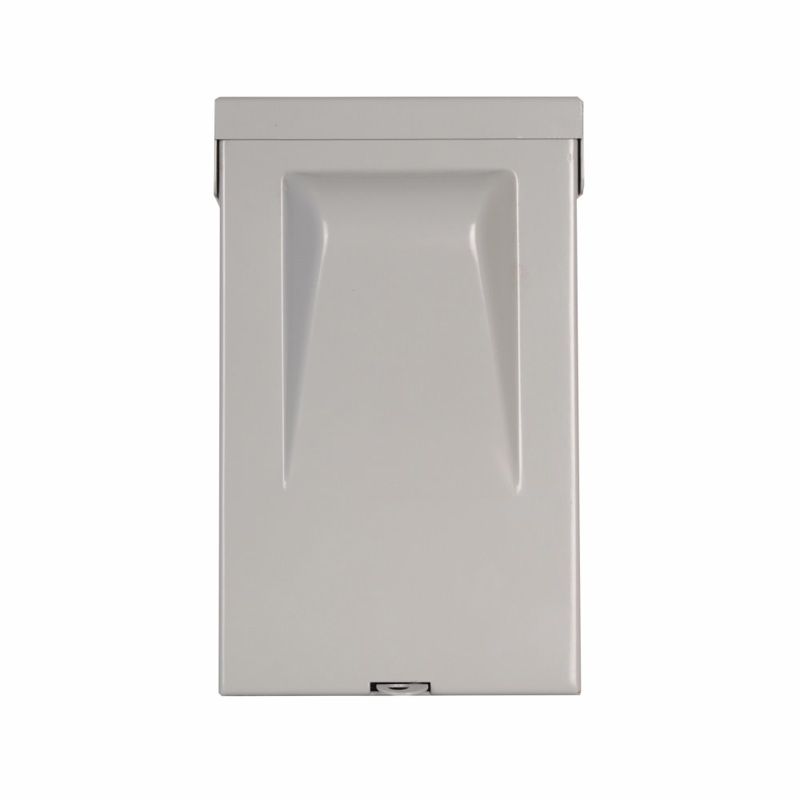

Eaton air conditioning disconnect, Fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray

Attributes

  • Type: Disconnect
  • Amp: 60 Amps
  • Color: ANSI 61 Gray
  • Configuration: Fused
  • Finish: Galvanized
  • Length: 5.4
  • Material: Steel
  • Width: 3.1500
  • Voltage: 120/240 Volts

Resources

SpecSheet
  • Eaton air conditioning disconnect, Fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray

    • Type: Disconnect
    • Amp: 60 Amps
    • Color: ANSI 61 Gray
    • Configuration: Fused
    • Finish: Galvanized
    • Length: 5.4
    • Material: Steel
    • Width: 3.1500
    • Voltage: 120/240 Volts
  • SpecSheet
