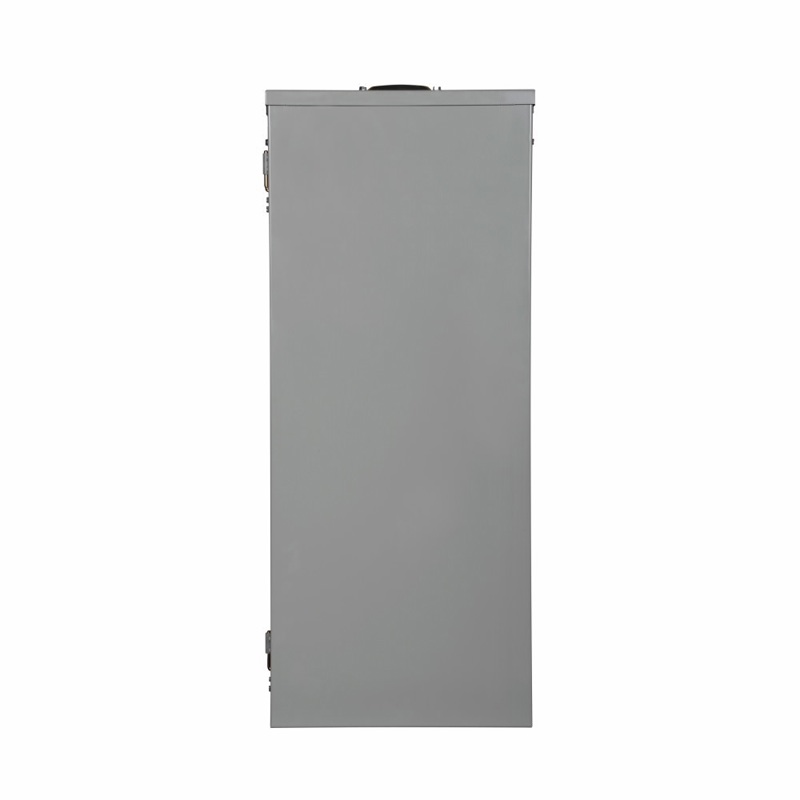

3BR3042L200R Eaton 30 Cir 200AML0 3 PH N3R Loadcenter

10964 E0 K Y Z C O D Q T P51 I U3 807

3BR3042L200R Eaton 30 Cir 200AML0 3 PH N3R Loadcenter

Coburn's Product #: 75142903

Mfg#: 3BR3042L200R

Brand: Eaton

Description

Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,200 A,G1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,42 Circuits,30 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#1 AWG-300 kcmil Cu/Al

Attributes

  • Type: Loadcenter
  • Collection: Cutler Hammer
  • Amp: 200 Amps
  • Configuration: Main Lug Only
  • Length: 3.88
  • Material: Aluminum
  • Mount: Combination Flush/Surface
  • Phase: 3 PH
  • Width: 14.3100
  • Voltage: 208 Star/120/240 Volts

Resources

SpecSheet
  • Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,200 A,G1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,42 Circuits,30 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#1 AWG-300 kcmil Cu/Al

    • Type: Loadcenter
    • Collection: Cutler Hammer
    • Amp: 200 Amps
    • Configuration: Main Lug Only
    • Length: 3.88
    • Material: Aluminum
    • Mount: Combination Flush/Surface
    • Phase: 3 PH
    • Width: 14.3100
    • Voltage: 208 Star/120/240 Volts
  • SpecSheet
