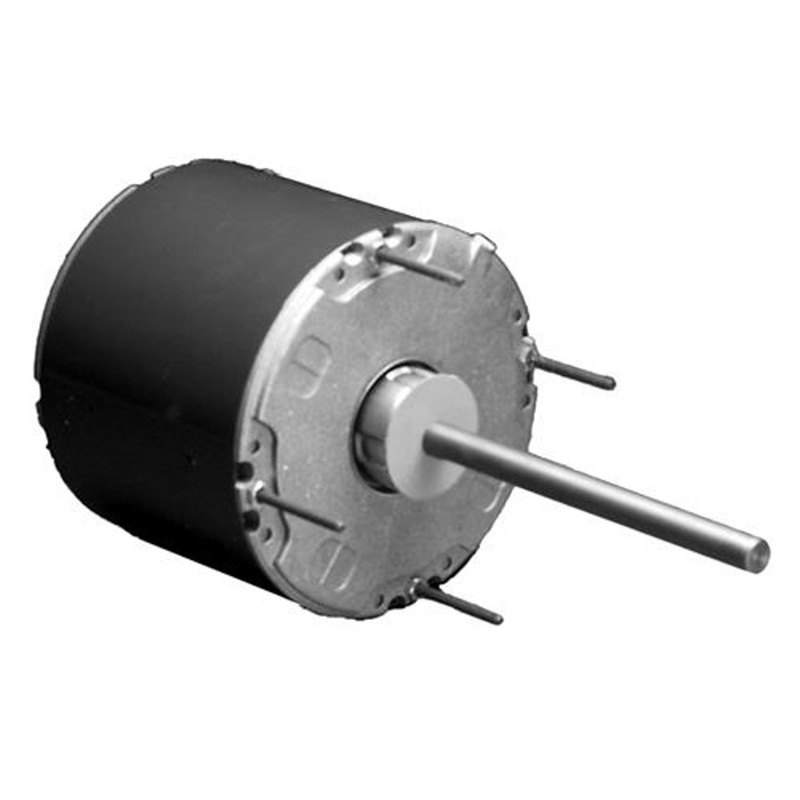

3/4 HP, 825 RPM, 3567, 208-230 V, 60 HZ, 56Z ELECTRICAL MOTOR

3/4 HP, 825 RPM, 3567, 208-230 V, 60 HZ, 56Z Model_Number: K0630WP4016862B, PRODUCT NAME: .75 HP - ODP - 825, PHASETYPE: 1_PERMANENT SPLIT CA, MOTOR ENCLOSURE: ODP, HORSEPOWER: .75, KILOWATTS: 0.6, POLES: 8, NUMBER SPEEDS: 1, RPM: 825, HERTZ: 60, VOLTS PRIMARY: 208-230 V, VOLTS : 208, VOLTS 2: 230, FRME : 56, SHAFT CODE: Z, STATOR DIAMETER: 6.3, STACK: 3.75, MOUNTING: STUD/BAND, MOTOR TYPE: FHP, OPPOSITE END BEARING: BALL, SHAFT END BEARING: BALL, ROTATION: REVERSIBLE, RUNCAPVOLTS: 370, SHIPPING WEIGHT: 37, THERMAL PROTECTION: AUTOMATIC RESET, BREAKDOWN TORQUE: 111.7, BREAKDOWN TORQUE UOM: OZFT, LOCKED ROTOR TORQUE: 3.975, LOCKED ROTOR TORQUE UOM: OZFT, INSULATION CLASS: B, LOCKED ROTOR AMPS: 13.58
