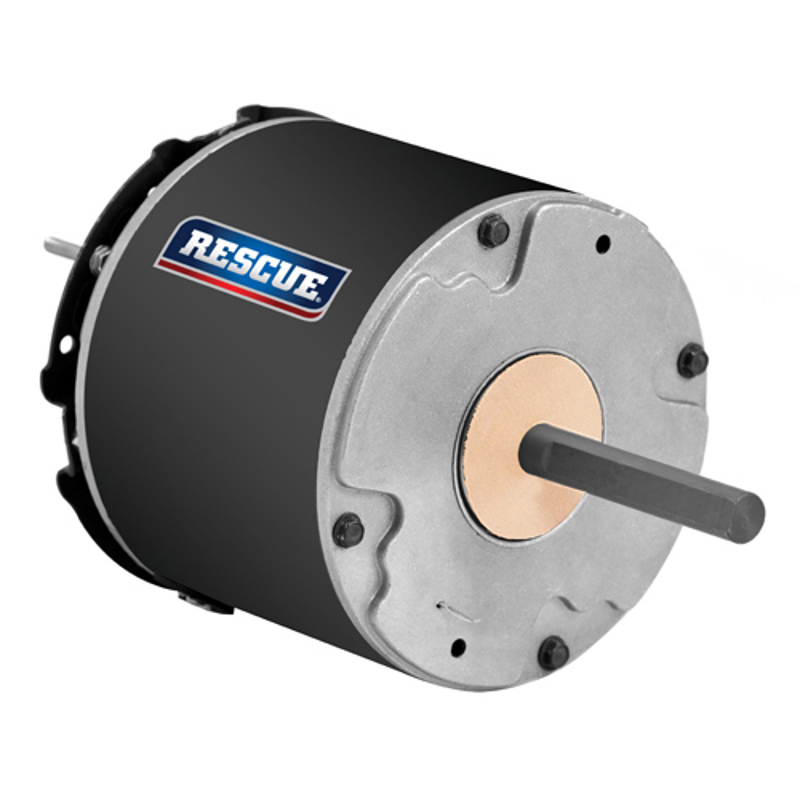

1/8 / 1/12 HP, 1075 RPM, 5440H, 208-230 V, 60 HZ, 42Y ELECTRICAL MOTOR

1/8 / 1/12 HP, 1075 RPM, 5440H, 208-230 V, 60 HZ, 42Y ELECTRICAL MOTOR
Coburn's Product #: EME5440H
Mfg#: K048MAH0158012B
Description
1/8 / 1/12 HP, 1075 RPM, 5440H, 208-230 V, 60 HZ, 42Y Model_Number: K048MAH0158012B, PRODUCT NAME: .125 HP - ENCLOSED - 1075, PHASETYPE: 1_PERMANENT SPLIT CA, MOTOR ENCLOSURE: ENCLOSED, HORSEPOWER: .125, HORSEPOWER 2: 0.083, POLES: 6, NUMBER SPEEDS: 1, RPM: 1075, HERTZ: 60, VOLTS PRIMARY: 208-230 V, VOLTS : 208, VOLTS 2: 230, FRME : 42, SHAFT CODE: Y, STATOR DIAMETER: 4.8, STACK: 1.25, MOTOR TYPE: FHP, OPPOSITE END BEARING: BALL, SHAFT END BEARING: BALL, AMBIENT: 70, ROTATION: CCW LEAD END REV, SERVICE FACTOR: 1, RUNCAPMFD: 5, RUNCAPVOLTS: 370, SHIPPING WEIGHT: 8, THERMAL PROTECTION: AUTOMATIC RESET, BREAKDOWN TORQUE: 16.56, BREAKDOWN TORQUE UOM: OZFT, LOCKED ROTOR TORQUE: 6.129, LOCKED ROTOR TORQUE UOM: OZFT, INSULATION CLASS: B, LOCKED ROTOR AMPS: 1.81, FULL LOAD AMPS PRIMARY: .8
Attributes
- 🔹: High Ambient Condenser Fan
- 🔹: RESCUE® Permanent Split Capacitor Motor
- 🔹: 5.0" Dia. Totally Enclosed Air Over
- 🔹: 70C Ambient Multi-Horsepower
- 🔹: 4.3" ClamShell 4.4" and 4.6" B.C.
- Type: Motor
