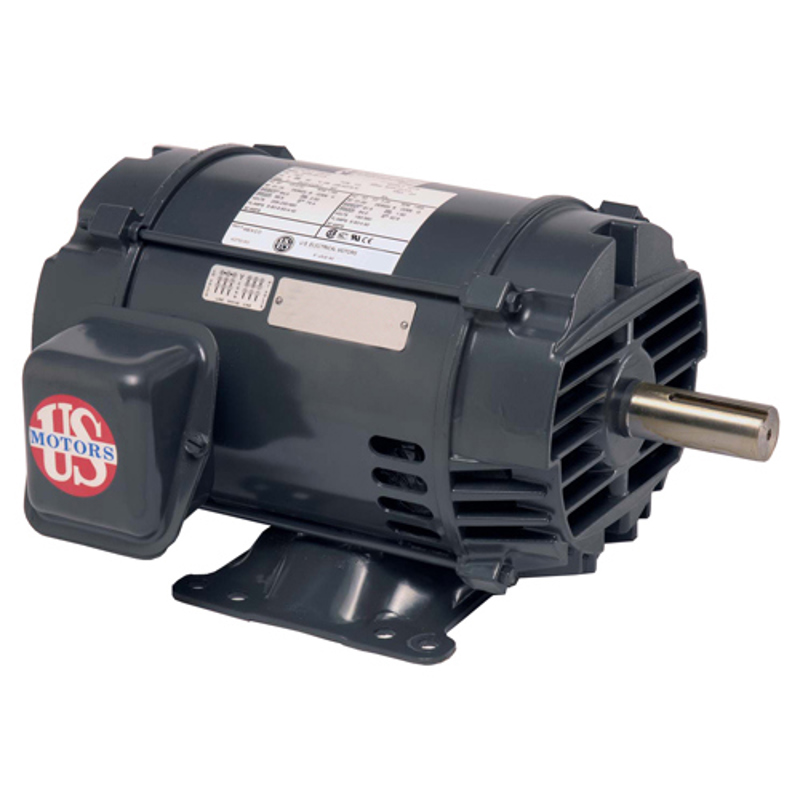

5 HP, 1765 & 1450 RPM, D5P2D, 208-230/460 & 190/380 V, 60 & 50 HZ, 184T ELECTRICAL MOTOR

5 HP, 1765 & 1450 RPM, D5P2D, 208-230/460 & 190/380 V, 60 & 50 HZ, 184T Model_Number: HD98, PRODUCT NAME: 5 HP - ODP - 1765, PHASETYPE: 3_PHASE, MOTOR ENCLOSURE: ODP, HORSEPOWER: 5, KILOWATTS: 3.7, POLES: 4, NUMBER SPEEDS: 1, RPM: 1765, RPM 2: 1765, RPM 3: 1755, RPM 4: 1450, RPM 5: 1450, HERTZ: 60, HERTZ 2: 50, VOLTS PRIMARY: 208-230/460, VOLTS : 460, VOLTS 2: 230, VOLTS 3: 208, VOLTS 4: 380, VOLTS 5: 190, FRME : 184, SHAFT CODE: T, MOUNTING: HORZ-FOOTED, ASSEMBLY POSITION: F1, MOTOR TYPE: DE, OPPOSITE END BEARING: 6206-2Z-J/C3, SHAFT END BEARING: 6206-2Z-J/C3, AMBIENT: 40, SERVICE FACTOR: 1.15, STARTCAPMFD: N\\A, SHIPPING WEIGHT: 59, BREAKDOWN TORQUE: 365, BREAKDOWN TORQUE UOM: PERCENT OF FLT, LOCKED ROTOR TORQUE: 244, LOCKED ROTOR TORQUE UOM: PERCENT OF FLT, INSULATION CLASS: F, KVA CODE LETTER: J, LOCKED ROTOR AMPS: 49, NEMA NOMINAL EFFICIENCY: 89.5, FULL LOAD AMPS PRIMARY: 13.7-13/6.5, SERVICE FACTOR AMPS PRIMARY: 15.6-14.5/7.3
