IDEAL WT4-1 WIRE-TWIST CONNECTION YELLOW BOX100 781789610061

I D E W T41 1

IDEAL WT4-1 WIRE-TWIST CONNECTION YELLOW BOX100 781789610061

Coburn's Product #: IDEWT41

Mfg#: WT4-1

Brand: Ideal Electrical

Description

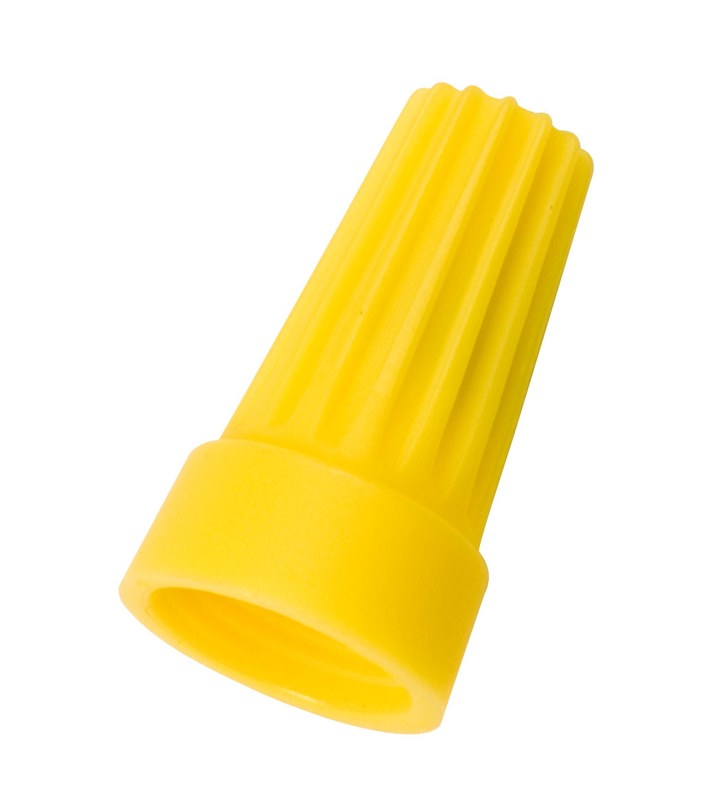

Buchanan, Wire Connector, WireTwist, Conductor Range: 18 - 10 AWG, 3/18 AWG Min, 4/14 AWG MAX With 1/18, Number Of Conductors: 2 to 5, Material: Flame-retardant Polypropelene, Color: Yellow, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: WT4

Attributes

  • Type: Electrical Connector
  • Color: Yellow
  • Length: 4.5000
  • Material: Polypropylene
  • Width: 3.5000

Resources

SpecSheet
  • Buchanan, Wire Connector, WireTwist, Conductor Range: 18 - 10 AWG, 3/18 AWG Min, 4/14 AWG MAX With 1/18, Number Of Conductors: 2 to 5, Material: Flame-retardant Polypropelene, Color: Yellow, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: WT4

    • Type: Electrical Connector
    • Color: Yellow
    • Length: 4.5000
    • Material: Polypropylene
    • Width: 3.5000
  • SpecSheet
