20341 IPS 1-1/2 or 2 PVC Studor Mini Vent 6 Pack

I M A G E I P S 20341

20341 IPS 1-1/2 or 2 PVC Studor Mini Vent 6 Pack

Coburn's Product #: IPS20341

Mfg#: 20341

Brand: IPS Corporation

Description

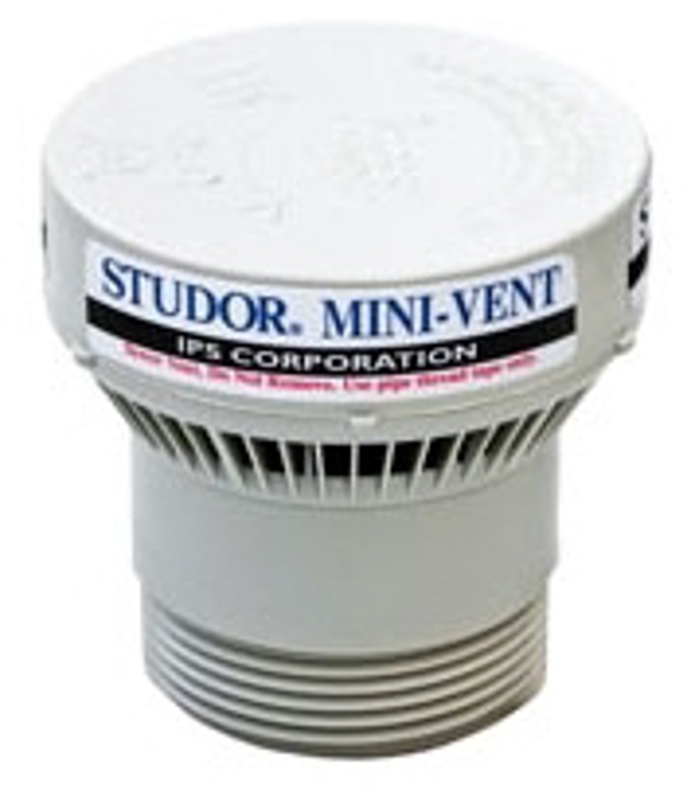

Studor Mini-Vent® 20341 Air Admittance Valve with PVC Adapter, 1-1/2 or 2 Inch

Attributes

  • 🔹: Compact air admittance valve with PVC adapter
  • 🔹: Ideal for a single fixture or group of fixtures; capacity of 160 DFUs (drain fixture units) on a branch and 24 DFUs on a stack
  • 🔹: Creates ventilation that prevents the loss of water seals in traps; uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors; exclusive vermin protection system keeps out bugs and foreign objects
  • 🔹: Fits 1-1/2- and 2-inch piping; temperature rating of -40°F to 150°F (-40°C to 65.6°C); complies to ANSI/ASSE 1050 and 1051; this style air admittance valve is not recognized as a mechanical vent in the International Building Code
  • Type: Hydronic Air Vent
  • Collection: Studor, MINI-VENT
  • Material: PVC
  • Size: 1-1/2 or 2 In

Resources

SpecSheet
  • Studor Mini-Vent® 20341 Air Admittance Valve with PVC Adapter, 1-1/2 or 2 Inch

    • 🔹: Compact air admittance valve with PVC adapter
    • 🔹: Ideal for a single fixture or group of fixtures; capacity of 160 DFUs (drain fixture units) on a branch and 24 DFUs on a stack
    • 🔹: Creates ventilation that prevents the loss of water seals in traps; uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors; exclusive vermin protection system keeps out bugs and foreign objects
    • 🔹: Fits 1-1/2- and 2-inch piping; temperature rating of -40°F to 150°F (-40°C to 65.6°C); complies to ANSI/ASSE 1050 and 1051; this style air admittance valve is not recognized as a mechanical vent in the International Building Code
    • Type: Hydronic Air Vent
    • Collection: Studor, MINI-VENT
    • Material: PVC
    • Size: 1-1/2 or 2 In
