Description

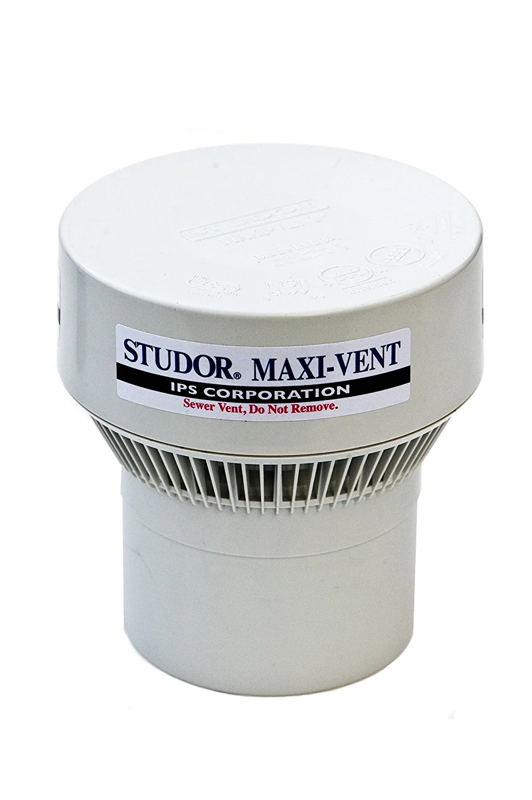

Studor Maxi-Vent® 20342 Rubber Air Admittance Valve with Push-Fit Connector, 3 or 4 Inch

Attributes

  • 🔹: Maxi-Vent air admittance valve with push-fit rubber connector; creates ventilation that prevents the loss of water seals in traps
  • 🔹: Designed for use as an individual, branch, circuit, or stack vent; capacity of up to 160 DFUs (drain fixture units) on a branch and 500 DFUs on a stack
  • 🔹: Uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors; exclusive vermin protection system keeps out bugs and foreign objects
  • 🔹: Fits 3- or 4-inch piping; complies to ANSI/ASSE 1050 and 1051; temperature rating of -40°F to 150°F (-40°C to 65.6°C); this style air admittance valve is not recognized as a mechanical vent in the International Building Code
  • Type: Hydronic Air Vent
  • Collection: Studor, MAXI-VENT
  • Connections: Push-Fit
  • Material: Rubber
  • Size: 3 in or 4 in

Resources

SpecSheet
  • Studor Maxi-Vent® 20342 Rubber Air Admittance Valve with Push-Fit Connector, 3 or 4 Inch

    • 🔹: Maxi-Vent air admittance valve with push-fit rubber connector; creates ventilation that prevents the loss of water seals in traps
    • 🔹: Designed for use as an individual, branch, circuit, or stack vent; capacity of up to 160 DFUs (drain fixture units) on a branch and 500 DFUs on a stack
    • 🔹: Uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors; exclusive vermin protection system keeps out bugs and foreign objects
    • 🔹: Fits 3- or 4-inch piping; complies to ANSI/ASSE 1050 and 1051; temperature rating of -40°F to 150°F (-40°C to 65.6°C); this style air admittance valve is not recognized as a mechanical vent in the International Building Code
    • Type: Hydronic Air Vent
    • Collection: Studor, MAXI-VENT
    • Connections: Push-Fit
    • Material: Rubber
    • Size: 3 in or 4 in
