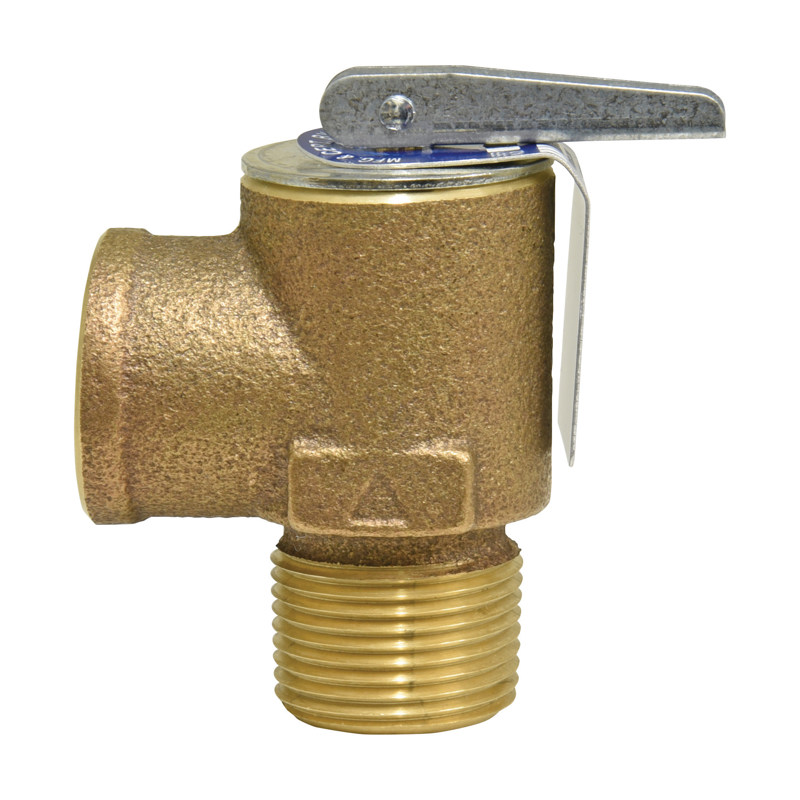

M335M2-030 3/4 3/4 IN Pressure Safety Relief Valve

5f60fb26f5a3349de17c9d2942d027e2f2cd56b1

M335M2-030 3/4 3/4 IN Pressure Safety Relief Valve

Coburn's Product #: WAT0342692

Mfg#: 0342692

Brand: Watts Regulator

Description

This 3/4 inch pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, a top-guided stem, and a non-stick Teflon (R) disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).

Attributes

  • 🔹: High heat resisting silicone disc
  • 🔹: Positive shut off
  • 🔹: ASME Section IV at 30 psi set point
  • 🔹: Seat located above drain
  • Type: Pressure Relief Valves
  • Collection: 335
