N240X 125-210 1 1 IN Automatic Reseating Temperature and Pressure Relief Valve

A8b5568584379f5354323aa65ff722fc88dfc7a2

N240X 125-210 1 1 IN Automatic Reseating Temperature and Pressure Relief Valve

Coburn's Product #: WAT0315120

Mfg#: 0315120

Brand: Watts Regulator

Description

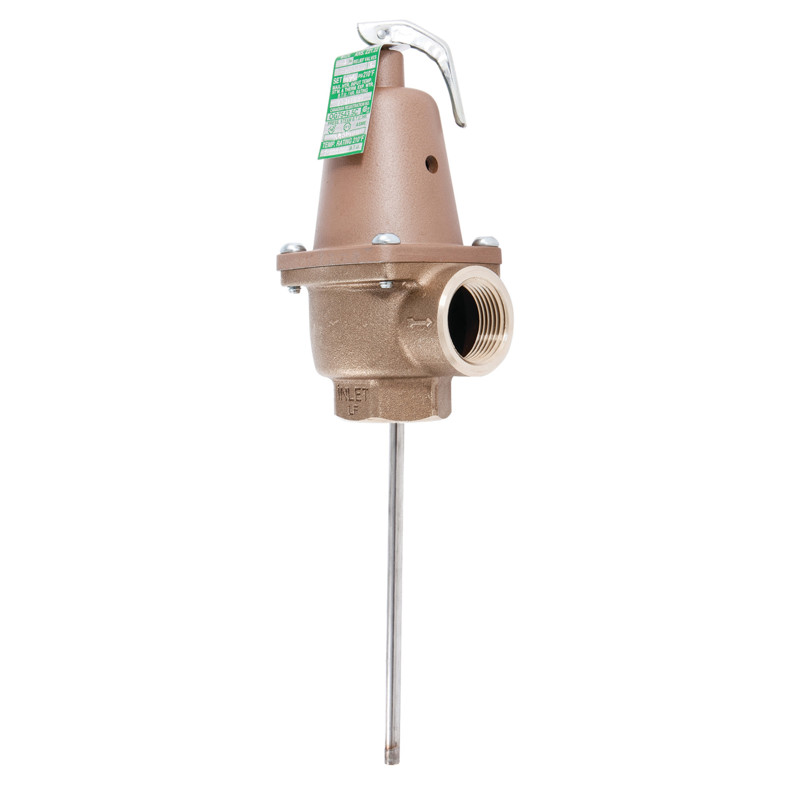

This 1 inch bronze automatic reseating temperature and pressure relief valve, series N240X, with a 6 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

Attributes

  • 🔹: Stainless steel spring
  • 🔹: Tamper resistant bonnet screws
  • 🔹: 6 Inch thermostat length
  • 🔹: Non-mechanical seat to disc alignment
  • Type: Pressure Relief Valves
  • Collection: N240
  • This 1 inch bronze automatic reseating temperature and pressure relief valve, series N240X, with a 6 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

    • 🔹: Stainless steel spring
    • 🔹: Tamper resistant bonnet screws
    • 🔹: 6 Inch thermostat length
    • 🔹: Non-mechanical seat to disc alignment
    • Type: Pressure Relief Valves
    • Collection: N240
