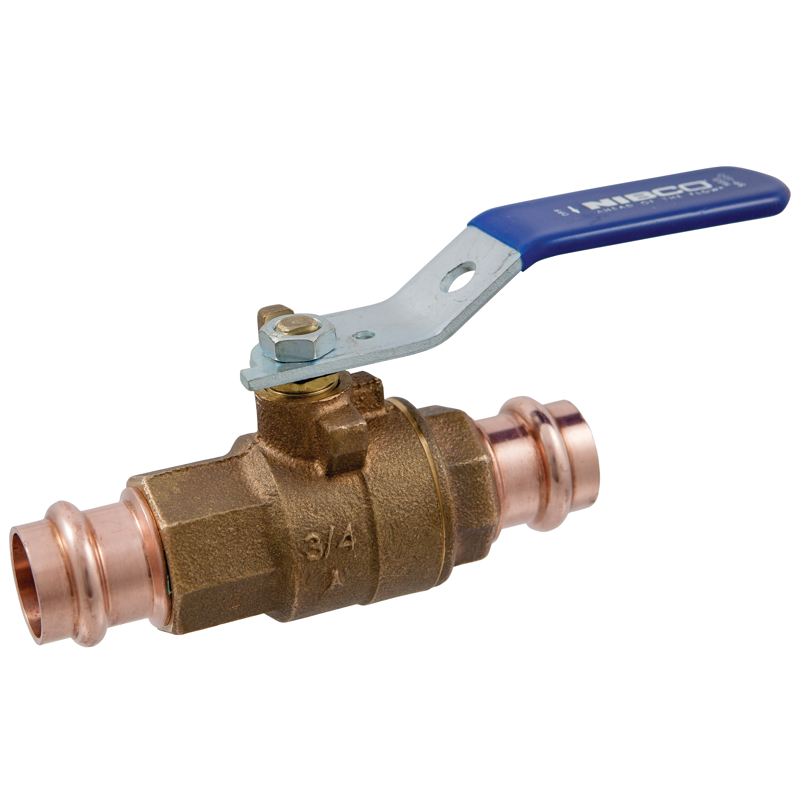

PC58570 1-1/4 PRS BALL VALVE PXP LVR HDL
Description
The NIBCO Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The two-piece valve is recommended for many applications, including HVAC, hot and cold potable water, and non-potable process water. The lever handle provides convenient quarter-turn operation and bubble-tight shutoff. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System® applies the proven performance of press technology to NIBCO valves and fittings -- the most specified flow control products in the industry. The NIBCO Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO Press System® valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Attributes
- 🔹: Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- 🔹: Maximum service temperature 250°F
- 🔹: Two-piece body
- 🔹: Full port
- 🔹: Silicon bronze stem
- 🔹: Reinforced PTFE seat rings
- 🔹: Press x press female end connections
- 🔹: Press leak-detection feature
- 🔹: Multiple handle options, including NIB-Seal®
- 🔹: Dezincification resistant
- Type: Press Ball Valve
- Connections: Press
- Length: 10.040
- Material: Bronze
- Size: 1-1/4 in
- Width: 4.280
