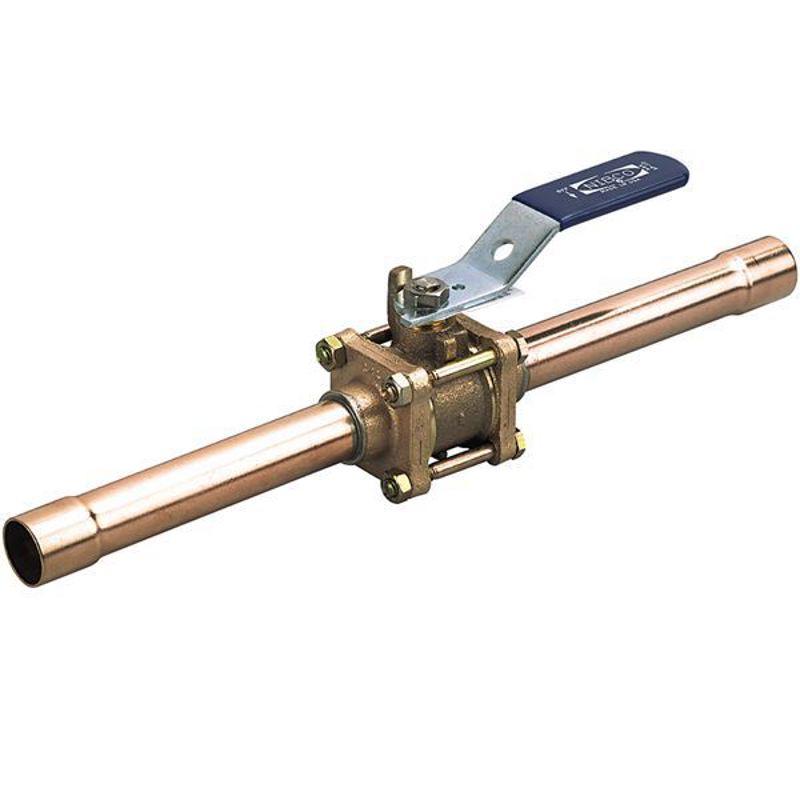

1 CS595YXEC Three-Piece Bronze Ball Valve - Medical Gas, Copper Stub Ends, Bronze Trim

N I B N J921 A A

1 CS595YXEC Three-Piece Bronze Ball Valve - Medical Gas, Copper Stub Ends, Bronze Trim

Coburn's Product #: NIBNJ921AA

Mfg#: CS-595-Y-X-EC

Brand: Nibco

Description

The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. The three-piece valve is ideal for medical gas applications. This valve is equipped with straight or extended stub ends for brazing in-line. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features solder end connections for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Attributes

  • 🔹: Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • 🔹: Valve pressure rating 200 psi 13.8 bar for medical gas
  • 🔹: Maximum temperature rating 400°F
  • 🔹: Full port
  • 🔹: Chrome plated brass ball, silicon bronze stem
  • 🔹: Blowout-proof stem
  • 🔹: Standard lever handle or locking lever, optional NIB-SEAL®
  • 🔹: Expanded cup end connection
  • 🔹: Dezincification resistant
  • 🔹: Cleaned and bagged for medical gas
  • Type: Ball Valve
  • Country Of Origin: United States of America
  • Length: 13.830
  • Material: Bronze
