T58070UL 1-1/2 UL 842
Description

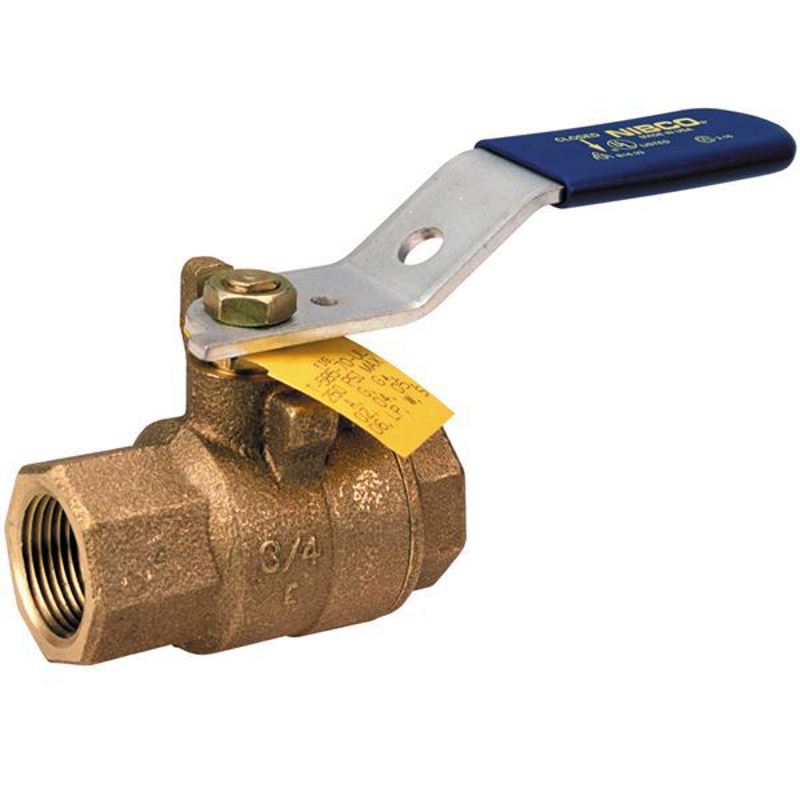

The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Attributes
- 🔹: Valve pressure rating 250 psi/17.2 bar non-shock LP gas per UL842
- 🔹: Conventional port
- 🔹: Chrome plated brass ball, silicon bronze stem
- 🔹: Blowout-proof stem
- 🔹: Standard lever handle, zinc plated, Plastisol coated
- 🔹: Threaded end connections
- 🔹: Dezincification resistant
- 🔹: Use in U.S. drinking water applications is prohibited after January 3, 2014
- 🔹: CSA certified to ANSI/ASME B16.33 and CGA 3.16 for natural and propane gas to 125 psig (1/4" to 1")
- 🔹: CUL YSDT7
- Type: Meter Ball Valve
- Length: 8.600
- Material: Bronze
- Size: 1-1/2 in
- Width: 4.100
