T58570HC 3/4 W/ 3/4 HOSE CAP CHAIN
Description

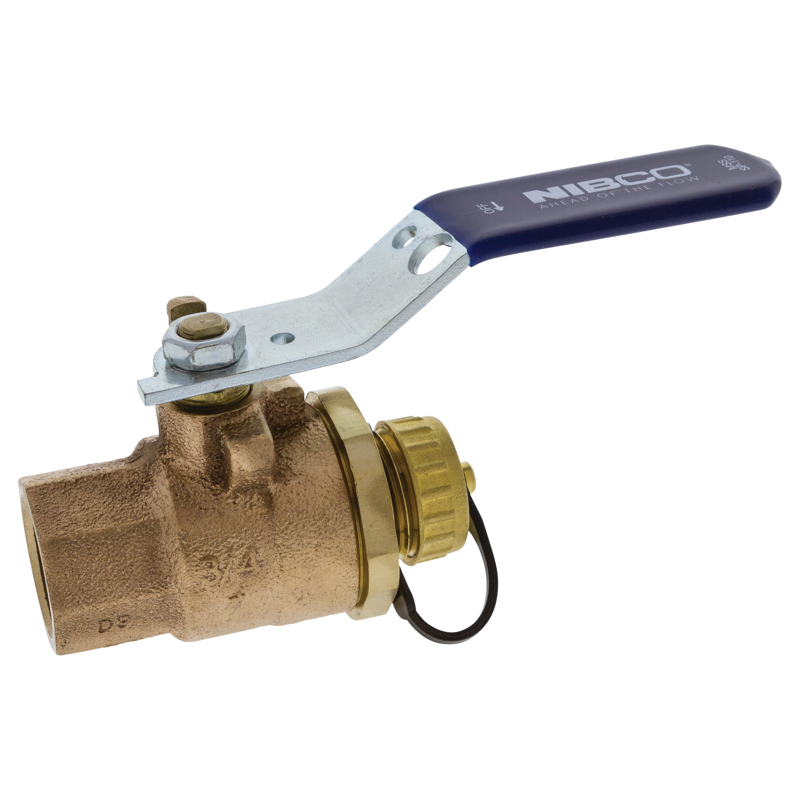

The NIBCO® full port valve features thread end connections for easy installation. The bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close and bubble-tight shutoff at 600 PSI. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Attributes
- 🔹: Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- 🔹: Maximum temperature rating 400°F
- 🔹: Full port
- 🔹: Chrome plated brass ball, silicon bronze stem
- 🔹: Blowout-proof stem
- 🔹: Threaded NPT x 3/4" hose end connections with cap and chain
- 🔹: Standard lever handle
- 🔹: Dezincification resistant
- 🔹: Use in U.S. drinking water applications is prohibited after January 3, 2014
- 🔹: Conforms to MSS SP-110
- Type: Brass Ball Valve
- Connections: Threaded
- Length: 6.300
- Material: Bronze
- Size: 3/4 in
- Width: 3.100
