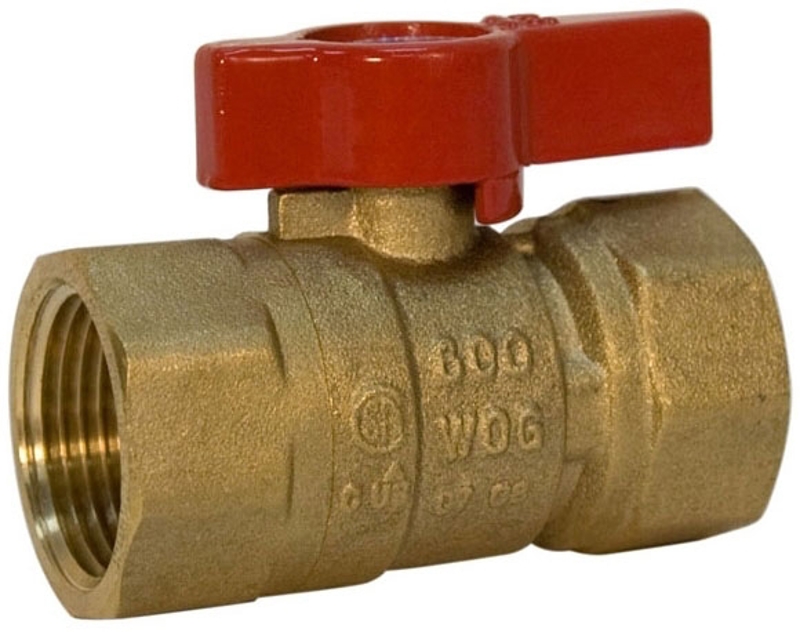

GB1A 1 GAS BV W/LEVER HANDLE
Description
The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features threaded end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO INC. 2-year limited warranty.
Attributes
- 🔹: Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- 🔹: RPTFE seat
- 🔹: FIP x FIP end connections
- 🔹: Not for water service
- 🔹: 1/2 psi for indoor appliance connections per ANSI Z21.15 and CSA 9.1
- 🔹: 5 psi for indoor shutoff per CGA 91-002 and ASME B16.44
- Type: Gas Ball Valve
- Connections: Female Threaded X Female Threaded
- Fuel Type: Natural Gas
- Length: 2.760
- Material: Brass
- Size: 1 in.
- Width: 2.190
