37383 Oatey Moda Fr- Imob- 1/4 Turn- Pl- Cpvc- Noham

Coburn's Product #: OAT37383

Mfg#: 37383

Brand: Oatey

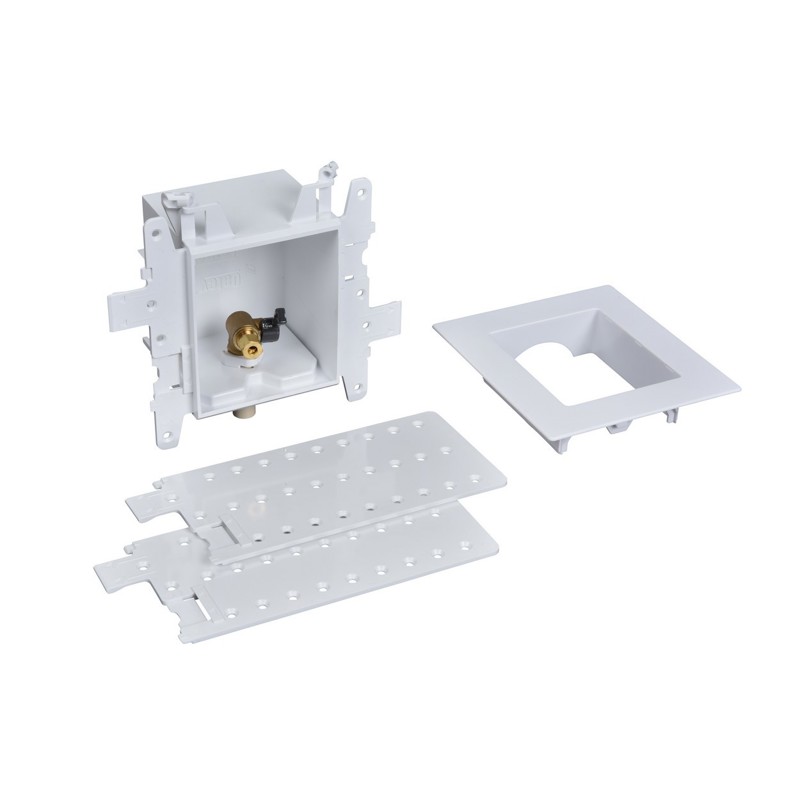

Oatey® Moda™ Fire-Rated, Ice Maker, 1-Valve, CPVC (Male), No Hammer

🔹: Moda™ compact-size, fire-rated ice maker outlet box
🔹: Infinite configuration options for easy, flexible installation
🔹: Connects to CPVC supply line with solvent weld connection
🔹: Contains (1) 1/4 Inch outer diameter compression valves pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation
🔹: Two-piece valve design makes valve replacement easy to repair, without damaging drywall; valves rated to 150 PSI air and 250 PSI water
🔹: Unique interlocking wing flanges accommodate on-stud and straddle-studs; advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box
🔹: Includes faceplate, pre-installed intumescent pad for protection under extreme heat, metal brackets and a debris cover
🔹: Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water
🔹: Box made of high impact polystyrene stands up to the roughest job site abuse; listed to IAPMO PS-54
🔹: Faceplate dimensions: 6 in. W x 6.45 in. H
Type: Ice Maker Box
Color: White
Hazardous Material: False
Width: 8.3
