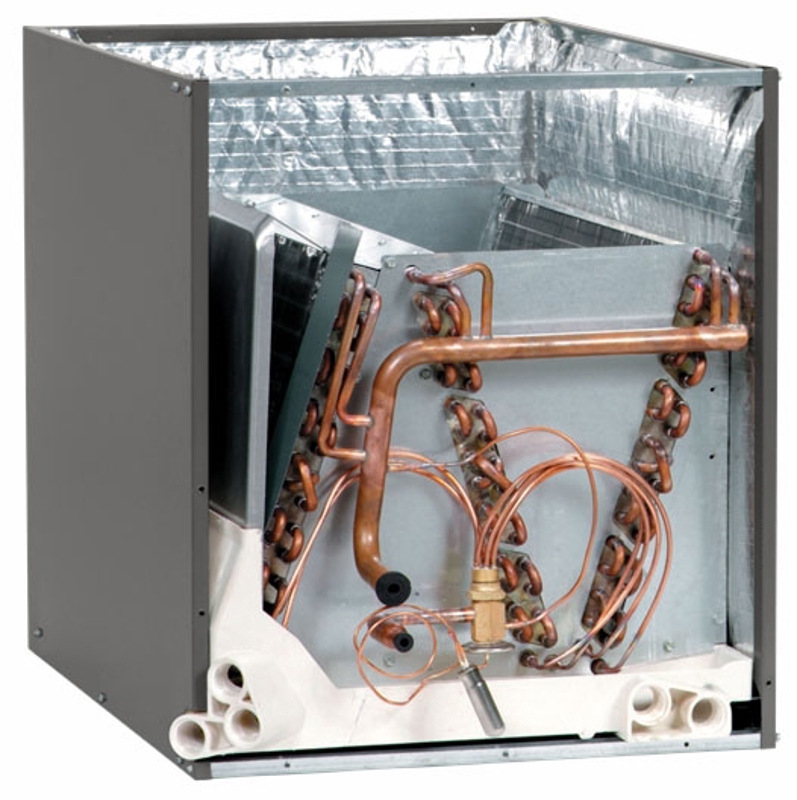

RCFV-HM4824BC Ruud 3-1/2 - 4 Ton 18 SEER Multi-Position Evaporator Coil

I M A G E Rheem Manufacturing R C F V H M4824 B C

RCFV-HM4824BC Ruud 3-1/2 - 4 Ton 18 SEER Multi-Position Evaporator Coil

Coburn's Product #: RCF4824HTAMCA

Mfg#: RCF4824HTAMCA

Brand: Ruud

Description

RCFV-HM4824BC Ruud 3-1/2 - 4 Ton 18 SEER Multi-Position Evaporator Coil

Attributes

  • 🔹: Ruud Indoor Replacement Coils are designed for use with Ruud outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Ruud outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW]
  • 🔹: Constructed of aluminum fins bonded to internally grooved aluminum tubing
  • 🔹: Coils are tested at the factory with an extensive refrigerant leak check
  • 🔹: Coils have copper sweat refrigerant connections
  • 🔹: Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
  • 🔹: Approved for system application with variety of Ruud outdoor units
  • 🔹: Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
  • 🔹: Compatible with Germicidal Light System (UV resistant)
  • 🔹: Unique drain pan design maximizes application flexibility and condensate removal
  • 🔹: N-Coil design maximizes performance and minimizes height required at installation
  • Type: Evaporator Coil
  • BTU: 42K-48K
  • Configuration: Multi-Position
  • Efficiency: 18 SEER
  • Refrigerant: R-410A
  • Seer: 18
  • Ton: 3.5-4
  • Width: 24-1/2
