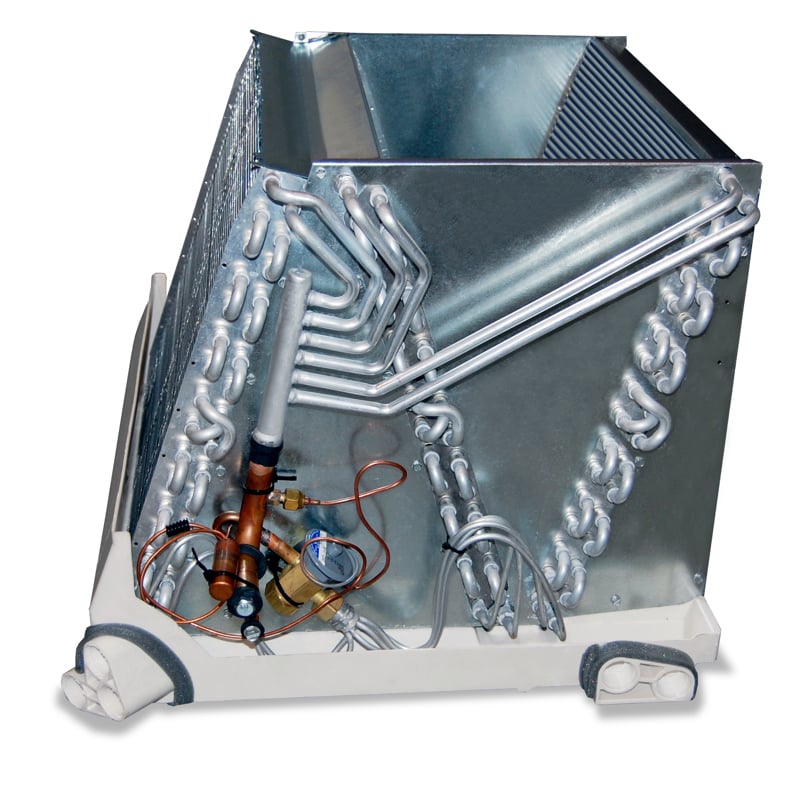

RCF6024STAVUA Ruud Uncased Coil R-410a

Coburn's Product #: RCF6024STAVUA

Mfg#: RCF6024STAVUA

Brand: Ruud

Description

RCF6024STAVUA Ruud Uncased Coil R-410a

Attributes

  • 🔹: Ruud® Indoor Replacement Coils are designed for use with Ruud outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Ruud outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW]
  • 🔹: Constructed of aluminum fins bonded to internally grooved aluminum tubing
  • 🔹: Coils are tested at the factory with an extensive refrigerant leak check
  • 🔹: Coils have copper sweat refrigerant connections
  • 🔹: Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
  • 🔹: Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only)
  • 🔹: Approved for system application with variety of Ruud outdoor units
  • 🔹: Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
  • 🔹: Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
  • 🔹: N-Coil design maximizes performance and minimizes height required at installation
  • Type: Cased Coil
  • Refrigerant: R-410A
  • Width: 30.87
