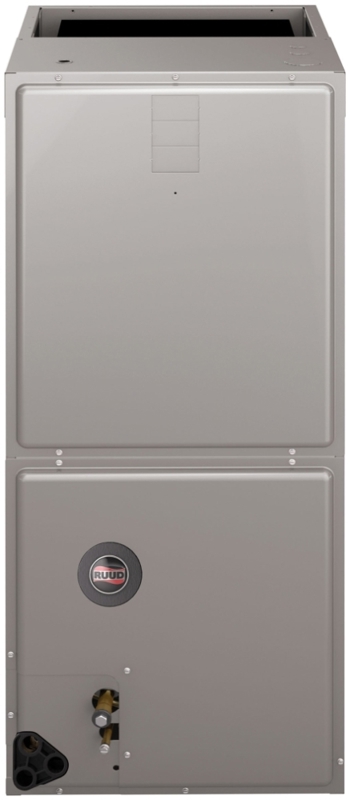

RH2T6021SEACJA Ruud 5 Ton 16 SEER 1 PH Two Stage Air Handler

I M A G E Rheem Manufacturing Ruud R H2 T6021 S E A C J A

RH2T6021SEACJA Ruud 5 Ton 16 SEER 1 PH Two Stage Air Handler

Coburn's Product #: RH2T6021SEACJA

Mfg#: RH2T6021SEACJA

Brand: Ruud

Description

RH2T6021SEACJA Ruud 5 Ton 16 SEER 1 PH Two Stage Air Handler

Attributes

  • 🔹: The RH2T is EcoNet Enabled (EEV Option): This allows the RH2T to directly communicate with the EcoNet Smart Home System
  • 🔹: Feature an Electronic Expansion Valve (EEV)
  • 🔹: The RH2T features a Constant torque Two-stage motor (ECM) which provides enhanced SEER performance with most Ruud outdoor units
  • 🔹: Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications
  • 🔹: Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
  • 🔹: Factory-installed indoor coil
  • 🔹: Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
  • 🔹: 1½ ton [5.3 kW] through 5 ton [17.6 kW] models are between 42½ to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep
  • 🔹: Enhanced airflow up to .7" external static pressure
  • 🔹: Suitable for application in mobile home
  • Type: Air Handler
  • Air Flow (cfm): 800-1600 CFM
  • BTU: 48K
  • Efficiency: 16 SEER
  • Length: 26.5
  • Phase: 1 PH
  • Seer: 16
  • Stage: Two Stage
  • Ton: 5
  • Width: 23.00
  • Voltage: 208/240 Volts

Resources

SpecSheet
  • RH2T6021SEACJA Ruud 5 Ton 16 SEER 1 PH Two Stage Air Handler

    • 🔹: The RH2T is EcoNet Enabled (EEV Option): This allows the RH2T to directly communicate with the EcoNet Smart Home System
    • 🔹: Feature an Electronic Expansion Valve (EEV)
    • 🔹: The RH2T features a Constant torque Two-stage motor (ECM) which provides enhanced SEER performance with most Ruud outdoor units
    • 🔹: Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications
    • 🔹: Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
    • 🔹: Factory-installed indoor coil
    • 🔹: Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
    • 🔹: 1½ ton [5.3 kW] through 5 ton [17.6 kW] models are between 42½ to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep
    • 🔹: Enhanced airflow up to .7" external static pressure
    • 🔹: Suitable for application in mobile home
    • Type: Air Handler
    • Air Flow (cfm): 800-1600 CFM
    • BTU: 48K
    • Efficiency: 16 SEER
    • Length: 26.5
    • Phase: 1 PH
    • Seer: 16
    • Stage: Two Stage
    • Ton: 5
    • Width: 23.00
    • Voltage: 208/240 Volts
  • SpecSheet
