44473 Ridgid SR-24 Line Locator With Bluetooth and GPS

A6571e6554653fa5bd31ac365ed498f4c2e45f12

44473 Ridgid SR-24 Line Locator With Bluetooth and GPS

Coburn's Product #: RID44473

Mfg#: 44473

Description

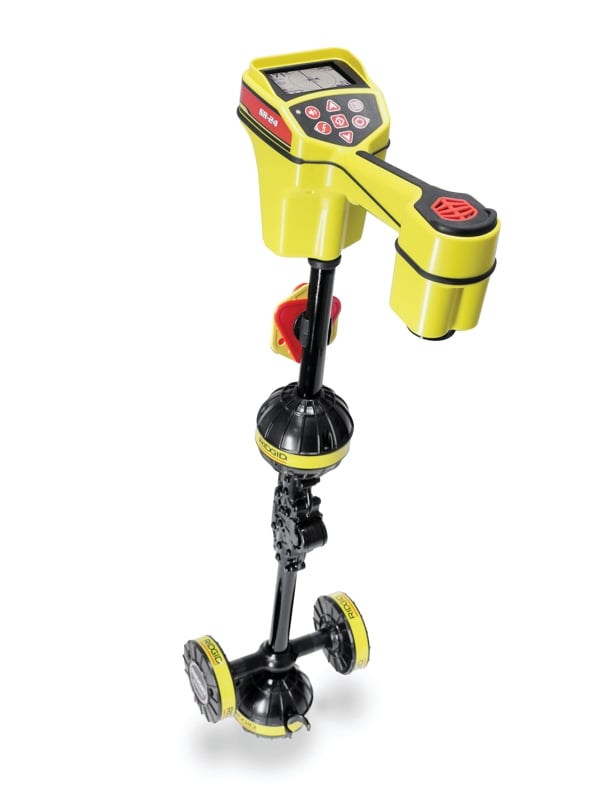

The RIDGID SR-24 is a precision utility locating instrument with GPS and Bluetooth® technology for easy integration with external data capture devices. The SR-24’s omnidirectional antennas capture the complete signal field, making it easy to acquire the signal and trace its path. The receiver displays the utility's position and direction on the display, providing an intuitive locating experience. For added confidence, audio and visual warnings notify the operator if the shape of the signal field is being distorted so that appropriate action can be taken to avoid mismarking the utility’s position. Active Line Trace Frequencies* : 128 Hz, 1 kHz, 8 kHz and 33 kHz Passive Power Trace : 50 Hz, 60 Hz, <4 kHz Broadband Passive Radio Trace : 4 kHz-15 kHz, 15 kHz-36 kHz Sonde Frequencies * : 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz Power Source : 4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional) Battery Life : Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours Weight : 3.5 lbs. (1.6 kg) Wireless Technology : Bluetooth Class 1 Wireless Range : 200 yards (183 meters) GPS Average Accuracy : Less than 8.2’ (2.5 m) Meets FCC Class A and EN 55022 Class A requirements * 30 user definable frequencies can be set from 10 kHz to 35 kHz

Attributes

  • 🔹: Full Lifetime Warranty
  • 🔹: Continuously monitors for interference; audio cues and on-screen displays provide guidance to help users avoid mistakes.
  • 🔹: Integrated GPS and Bluetooth® technology give a real‐time stream of data to Bluetooth-enabled devices.
  • 🔹: Included case and folding antennae mast allow for secure and easy transport and storage.
  • 🔹: Shows the utility's estimated position, direction and path.
  • 🔹: Captures the complete signal field for greater locating speed and accuracy.
  • 🔹: Can trace any frequency from 10 Hz to 35 kHz.
  • Type: Misc Tool

Resources

SpecSheet
Parts Breakdown
  • The RIDGID SR-24 is a precision utility locating instrument with GPS and Bluetooth® technology for easy integration with external data capture devices. The SR-24’s omnidirectional antennas capture the complete signal field, making it easy to acquire the signal and trace its path. The receiver displays the utility's position and direction on the display, providing an intuitive locating experience. For added confidence, audio and visual warnings notify the operator if the shape of the signal field is being distorted so that appropriate action can be taken to avoid mismarking the utility’s position. Active Line Trace Frequencies* : 128 Hz, 1 kHz, 8 kHz and 33 kHz Passive Power Trace : 50 Hz, 60 Hz, <4 kHz Broadband Passive Radio Trace : 4 kHz-15 kHz, 15 kHz-36 kHz Sonde Frequencies * : 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz Power Source : 4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional) Battery Life : Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours Weight : 3.5 lbs. (1.6 kg) Wireless Technology : Bluetooth Class 1 Wireless Range : 200 yards (183 meters) GPS Average Accuracy : Less than 8.2’ (2.5 m) Meets FCC Class A and EN 55022 Class A requirements * 30 user definable frequencies can be set from 10 kHz to 35 kHz

    • 🔹: Full Lifetime Warranty
    • 🔹: Continuously monitors for interference; audio cues and on-screen displays provide guidance to help users avoid mistakes.
    • 🔹: Integrated GPS and Bluetooth® technology give a real‐time stream of data to Bluetooth-enabled devices.
    • 🔹: Included case and folding antennae mast allow for secure and easy transport and storage.
    • 🔹: Shows the utility's estimated position, direction and path.
    • 🔹: Captures the complete signal field for greater locating speed and accuracy.
    • 🔹: Can trace any frequency from 10 Hz to 35 kHz.
    • Type: Misc Tool
  • SpecSheet
    Parts Breakdown
