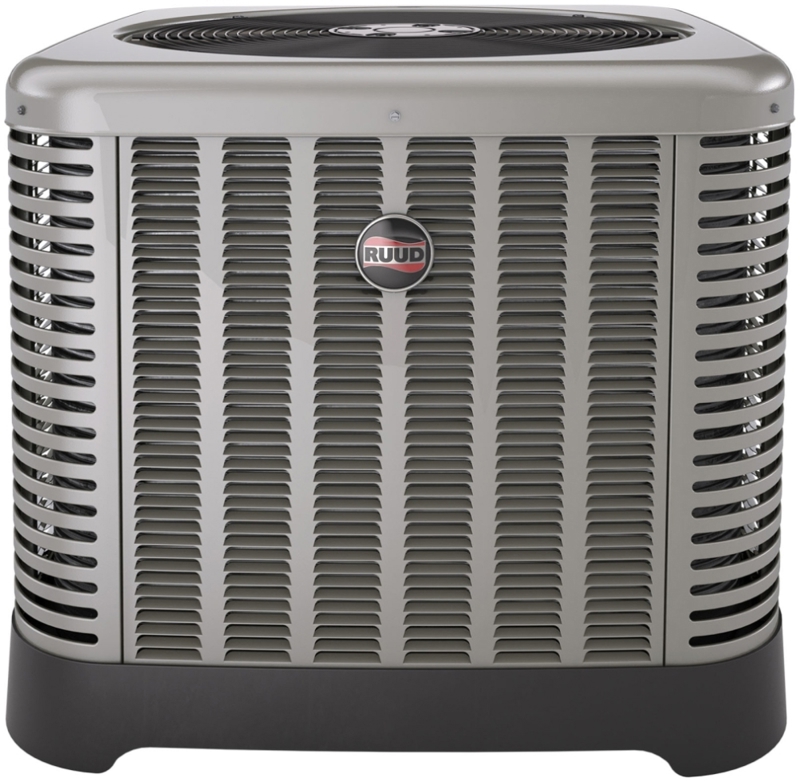

RP1448AD1NA Ruud 4 Ton 14 SEER 11.5 EER 9 HSPF 460 Volts Three Phase Single Stage Heat Pump
RP1448AD1NA Ruud 4 Ton 14 SEER 11.5 EER 9 HSPF 460 Volts Three Phase Single Stage Heat Pump
Coburn's Product #: RP1448AD1NA
Mfg#: RP1448AD1NA
Brand: Ruud
Description
RP1448AD1NA Ruud 4 Ton 14 SEER 11.5 EER 9 HSPF 460 Volts Three Phase Single Stage Heat Pump
Attributes
- 🔹: New composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- 🔹: Powder coat paint system – for a long lasting professional finish
- 🔹: Scroll compressor – uses 70% fewer moving parts for higher efficiency and increased reliability
- 🔹: Curved louver panels – provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- 🔹: Rust resistant screws – confirmed through 1500-hour salt spray testing
- 🔹: Diagnostic service window with two-fastener opening – provides access to the high and low pressure
- 🔹: External gauge port access – allows easy connection of “low-loss” gauge ports
- 🔹: 35% fewer cabinet fasteners and fastener-free base – allow for faster access to internal components and hassle-free panel removal
- 🔹: QR code – provides technical information on demand for faster service calls
- 🔹: Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
- Type: Heat Pump
- Collection: Achiever Series
- Air Flow (cfm): 4055 CFM
- Amp: 6.2 Amps Rated Load/41Amps Locked Rotor Compressor
- BTU: 48K
- Compressor Type: Scroll
- Efficiency: 14 SEER
- Green Type: EnergyStar
- Length: 33.8
- Material: Galvanized Steel
- Phase: 3 PH
- Refrigerant: R-410A
- Seer: 14
- Stage: Single Stage
- Ton: 4
- Width: 33.8
- Voltage: 460 Volts
