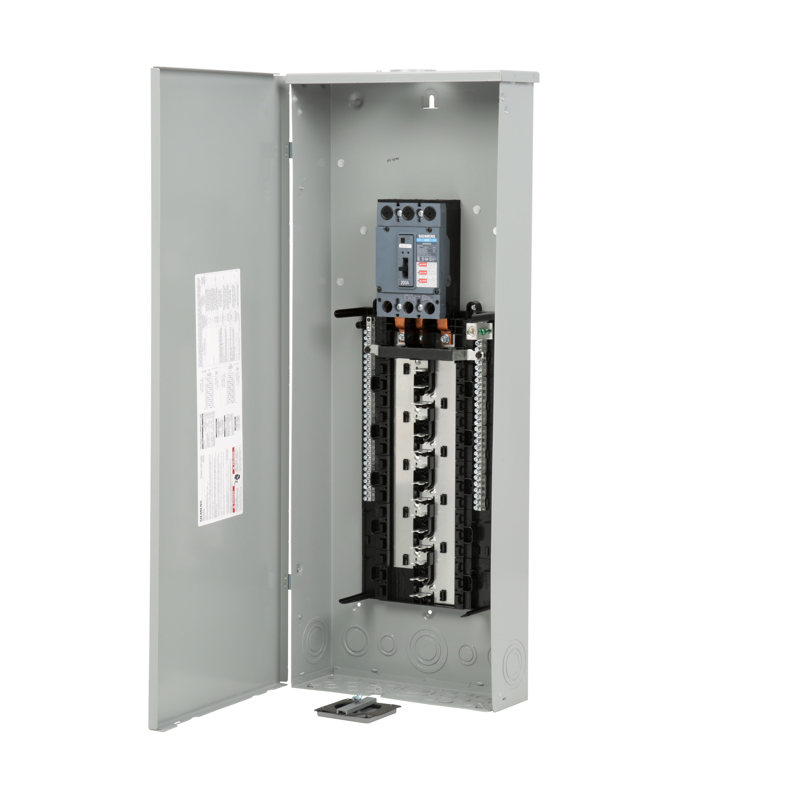

Sw3054B3200 Siemens 3 Phase Load Center 30S 54C Main Breaker 200 Amps Aluminum Outdoor Panel

662643158250 V2 R01 C03

Sw3054B3200 Siemens 3 Phase Load Center 30S 54C Main Breaker 200 Amps Aluminum Outdoor Panel

Coburn's Product #: SIESW3054B3200

Mfg#: SW3054B3200

Brand: Siemens

Description

Siemens Low Voltage Es Series Load Center. Factory Installed Main Breaker With 30 1-Inch Spaces Allowing Max 54 Circuits. 3-Phase 4-Wire System Rated 120/240V Or 120/208V (200A) 10Ka Interrupt. Special Features Aluminum Bus, Gray Trim, Nema Type3R Enclosure For Outdoor Use.

Attributes

  • Type: Loadcenter
  • Collection: SpeedFax
  • Amp: 200 Amps
  • Configuration: Main Breaker
  • Country Of Origin: Mexico
  • Length: 15.5000
  • Material: Aluminum Bus
  • Mount: Flush/Surface
  • Phase: 3 PH
  • Voltage: 240 Volts 3-Wire/120/240 Volts 4-Wire/or 120/208 Volts

Resources

  • Siemens Low Voltage Es Series Load Center. Factory Installed Main Breaker With 30 1-Inch Spaces Allowing Max 54 Circuits. 3-Phase 4-Wire System Rated 120/240V Or 120/208V (200A) 10Ka Interrupt. Special Features Aluminum Bus, Gray Trim, Nema Type3R Enclosure For Outdoor Use.

    • Type: Loadcenter
    • Collection: SpeedFax
    • Amp: 200 Amps
    • Configuration: Main Breaker
    • Country Of Origin: Mexico
    • Length: 15.5000
    • Material: Aluminum Bus
    • Mount: Flush/Surface
    • Phase: 3 PH
    • Voltage: 240 Volts 3-Wire/120/240 Volts 4-Wire/or 120/208 Volts
