3/4 Watts LF MIP X Hose Threaded Boiler Drain

I M A G E Watts 0123619

3/4 Watts LF MIP X Hose Threaded Boiler Drain

Coburn's Product #: WAT0123619

Mfg#: 0123619

Brand: Watts Regulator

Description

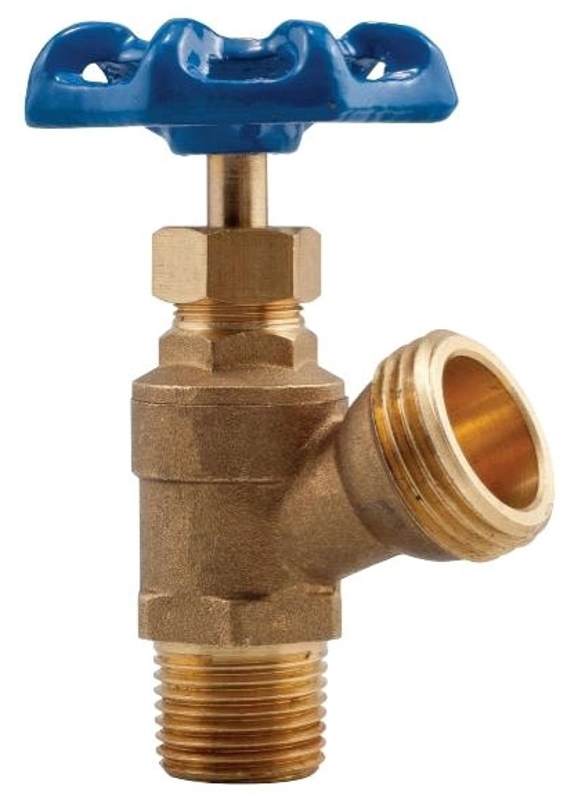

This 3/4 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch male IP inlet, Teflon stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 180 degrees F (82 degrees C).

Attributes

  • 🔹: Lead free construction
  • 🔹: Angle pattern
  • 🔹: Male IP inlet
  • 🔹: Hose thread outlet
  • Type: Boiler Drain
  • Connections: Male Threaded X Hose Threaded
  • Material: Brass

Resources

SpecSheet
  • This 3/4 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch male IP inlet, Teflon stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 180 degrees F (82 degrees C).

    • 🔹: Lead free construction
    • 🔹: Angle pattern
    • 🔹: Male IP inlet
    • 🔹: Hose thread outlet
    • Type: Boiler Drain
    • Connections: Male Threaded X Hose Threaded
    • Material: Brass
