LF 1 LF IT6300 1 LEAD FREE BALL AND WASTE BALL VALVE WITH NPT THREADED END CONNECTIONS

Watts 098268701456

LF 1 LF IT6300 1 LEAD FREE BALL AND WASTE BALL VALVE WITH NPT THREADED END CONNECTIONS

Coburn's Product #: WAT0123627

Mfg#: 0123627

Brand: Watts Regulator

Description

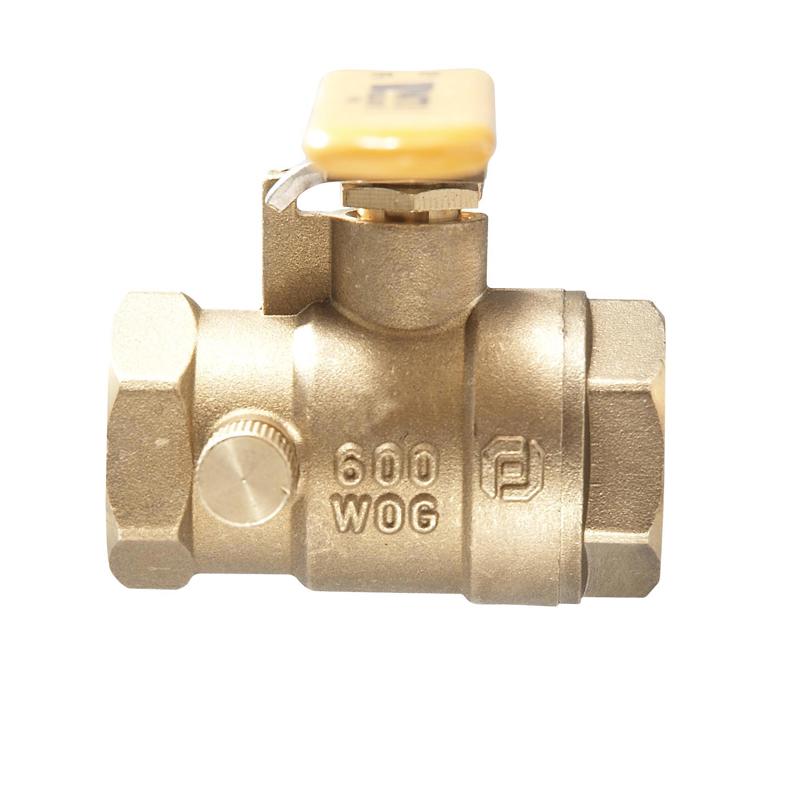

This 1 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1 inch NPT threaded end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.

Attributes

  • 🔹: Lead free brass body construction
  • 🔹: Side drain waste port for downstream draining or venting
  • 🔹: Adjustable packing design
  • 🔹: Chrome plated lead free brass ball
  • Type: Brass Valve with Waste
  • Connections: Threaded
  • This 1 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1 inch NPT threaded end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.
