LF IS6301 1IN LF BALL VALVE WITH WASTE AND SOLDER END CONNECTIONS
LF IS6301 1IN LF BALL VALVE WITH WASTE AND SOLDER END CONNECTIONS
Coburn's Product #: WAT0123630
Mfg#: 0123630
Brand: Watts Regulator
Description

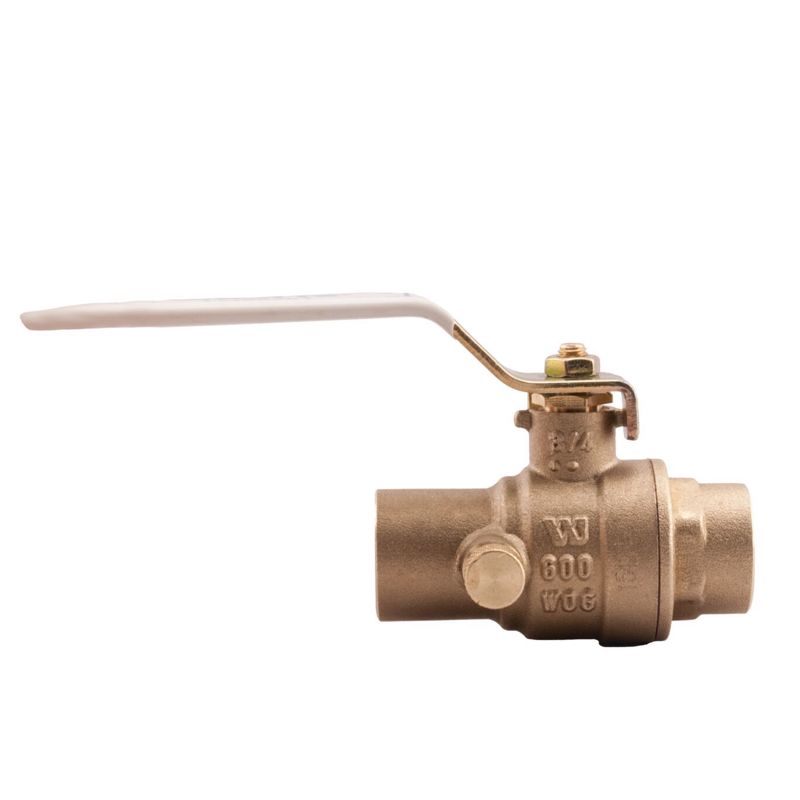

This 1 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.
Attributes
- 🔹: Lead free brass body construction
- 🔹: Side drain waste port for downstream draining or venting
- 🔹: Adjustable packing design
- 🔹: Chrome plated lead free brass ball
- Type: Brass Ball Valve
- Connections: Soldered X Soldered
- Green Type: Lead Free
- Material: Copper Alloy, Brass, Vinyl
- Size: 1 in
