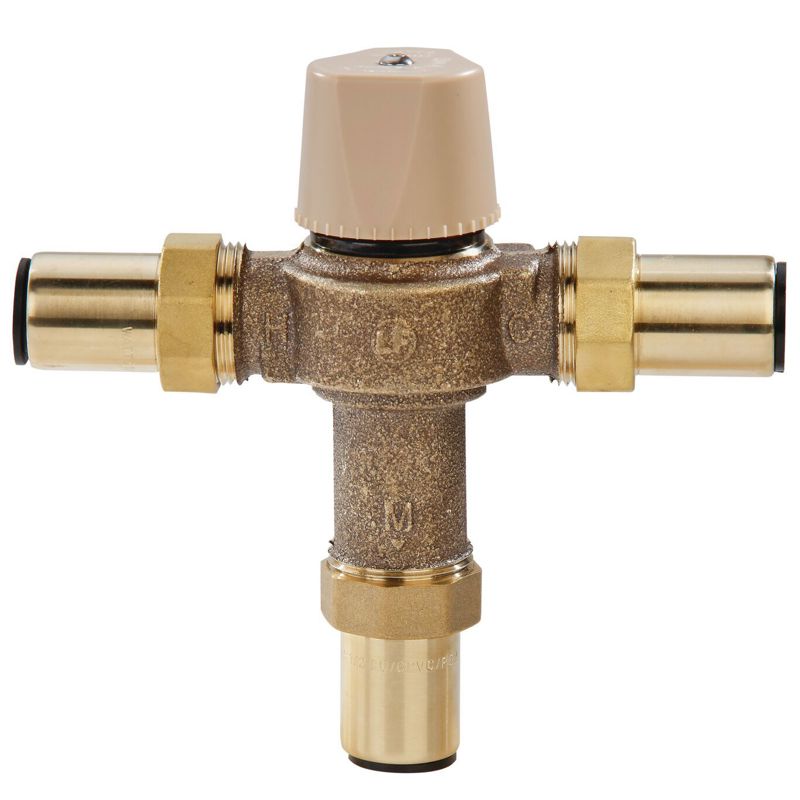

0559164 LFMMVM1QC Watts 1/2 Quick Connect Thermostatic Mixing Valve

0559164

0559164 LFMMVM1QC Watts 1/2 Quick Connect Thermostatic Mixing Valve

Coburn's Product #: WAT0559164

Mfg#: 0559164

Description

This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, quick-connect end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).

Attributes

  • 🔹: Lead free brass construction
  • 🔹: Thermal actuation technology for precise temperature control
  • 🔹: Locking mechanism secures temperature setting
  • 🔹: ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
  • Type: Commercial Thermostatic Mixing Valve
  • Connections: Quick Connect
  • Flow Rate: 0.5 to 12 gpm
  • Gallons per Minute: 0.5 to 12 gpm
  • Material: Cast Copper Silicon Alloy
  • Size: 1/2 in

Resources

  • This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, quick-connect end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
    • 🔹: Lead free brass construction
    • 🔹: Thermal actuation technology for precise temperature control
    • 🔹: Locking mechanism secures temperature setting
    • 🔹: ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
    • Type: Commercial Thermostatic Mixing Valve
    • Connections: Quick Connect
    • Flow Rate: 0.5 to 12 gpm
    • Gallons per Minute: 0.5 to 12 gpm
    • Material: Cast Copper Silicon Alloy
    • Size: 1/2 in
