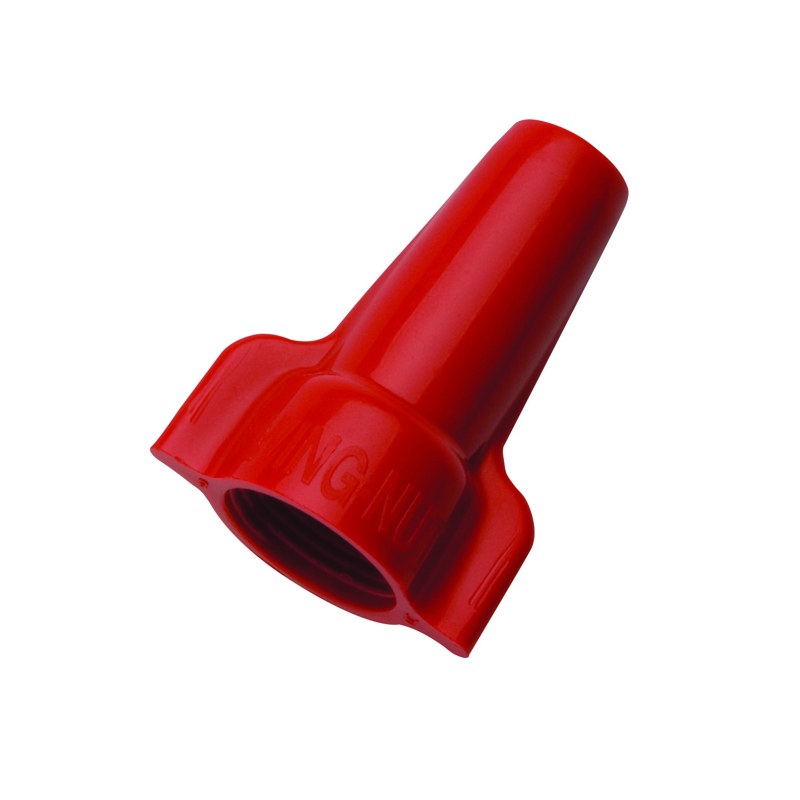

IDEAL 30-652 WINGNUT 452 RED 500 BAG 783250306527

73658643 A

IDEAL 30-652 WINGNUT 452 RED 500 BAG 783250306527

Coburn's Product #: 73658643

Mfg#: 30-652

Brand: Ideal Electrical

Description

IDEAL, Wire Connector, Wing-Nut, Twist-On, Number Of Conductors: 1 to 6, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Conductor Range: 18 - 8 AWG, Min 2 - 18, MAX 4-10, Material: Flame-retardant polypropelene shell, Color: Red, Voltage Rating: 600 V, Model Number: 452, Width: 1-15/64 IN, Height: 15/16 IN, Flammability Rating: UL 94V-2

Attributes

  • Type: Wire Nut
  • Length: 11.0000
  • Width: 9.0000

Resources

SpecSheet
  • IDEAL, Wire Connector, Wing-Nut, Twist-On, Number Of Conductors: 1 to 6, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Conductor Range: 18 - 8 AWG, Min 2 - 18, MAX 4-10, Material: Flame-retardant polypropelene shell, Color: Red, Voltage Rating: 600 V, Model Number: 452, Width: 1-15/64 IN, Height: 15/16 IN, Flammability Rating: UL 94V-2

    • Type: Wire Nut
    • Length: 11.0000
    • Width: 9.0000
  • SpecSheet
